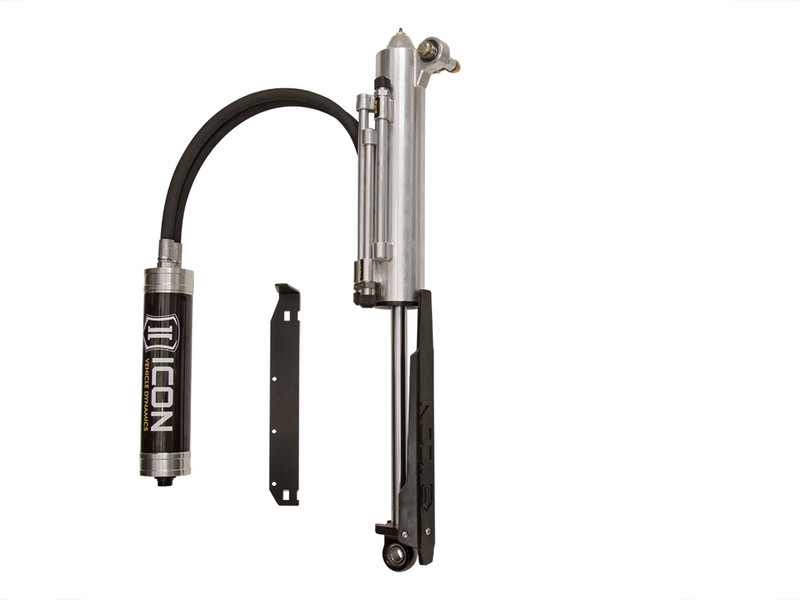

ICON Ford Raptor RXT 3.0 Zeta RR Drvr - 95201L

ICON VEHICLE DYNAMICS 10-14 RAPTOR RXT 3.0 ZETA RR DRVR - 95201L

The ICON RXT 3.0 Rear Bypass shock with 3.0 Dual Hose Remote Reservoir is truly the next level in Ford Raptor Performance for the rear of your truck. Although this RXT 3.0 can be used as a stand-alone Raptor rear shock, the full potential is achieved when combined with the ICON #95120 Bumpstop kit and #95220 RXT Multi-Rate Rear Leaf Springs. When all three of ICON's uniquely engineered products are "bolted" on together, you will gain 20% more up-travel and 30% more down-travel over stock leaving you with 15 inches of usable rear wheel travel overall. The desire for increased up-travel was answered with a unique side-mount eyelet approach that allowed ICON engineers to develop a shock shorter in collapsed length, longer at extension, and still fits in the factory mounting location. A 3.0 Dual Hose Recirculating Reservoir (Patent Pending) incorporates a check valve that allows hot fluid in the shock body to be exchanged with cooler fluid in the reservoir. The result of this is the ability of the Raptor to be driven harder for longer periods of time without the worry of shock fade and degraded performance.

• 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
• Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location
• Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
• Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
• Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
• High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
• High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
• Replaceable bypass tubes that can easily be replaced if damaged
• Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
• Special engineered damped valve seats for quiet and precise operation without the standard bypass loud “clicking” noise you will find with other brands
• Multi stage cad plated finish with polished and anodized top cap / rod ends
• Protective shin guards standard with every shock

Additional Information: These shocks are sold individually. Passenger side shock part # 95201R is also required.
