Baja Designs Ford/Toyota Squadron Sport Fog Pocket Light Kit: 06-14 F-150, 05-11 Tacoma, 07-13 Tundra - 447786

F-150 Tundra Tacoma Squadron Sport Clear FPK - 447786

This mount kit works for the Ford F-150 (06-14), Toyota Tundra (07-13), and Tacoma (05-11) Fog Pocket Kit allows you to mount 2 Squadrons in the factory location. This Plug and Play kit includes two vehicle specific mounting brackets and a wiring adapter, allowing you to use your factory switch and mounting hardware.

Baja Designs Features:

• Satisfactions Guarantee - 30 Day Money Back Guarantee


• Limited Lifetime Warranty - Complete Purchase Protection


• uService - Replaceable Lenses And Optics


• ClearView - All The Light, Right Where You Need It.


• MoistureBlock - Waterproof, Rain Proof, Submersible


• CopperDrive - Only LED Driven At 100 percent


• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications(Per Light):

• Lumens: 3,150 Utilizing 4 LEDs


• Wattage/Amps: 26W / 2A


• Dimensions: 3.07 Inch x 2.77 Inch x 3.07 Inch


• Weight: 12 ounces


• LED Life Expectancy: 49,930 Hours


• Front Lens: Hard Coated Polycarbonate


• Housing: Powder Coated Cast Aluminum


• Bezel: Billet Machined Aluminum


• Hardware and Bracket Material: Stainless Steel


• Exceeds MIL-STD810G (Mil-Spec Testing)


• Built-In Overvoltage Protection


• IP69K (Waterproof, Submersible to 9ft)


• IK10 Compliant (Mechanical Impact Testing)

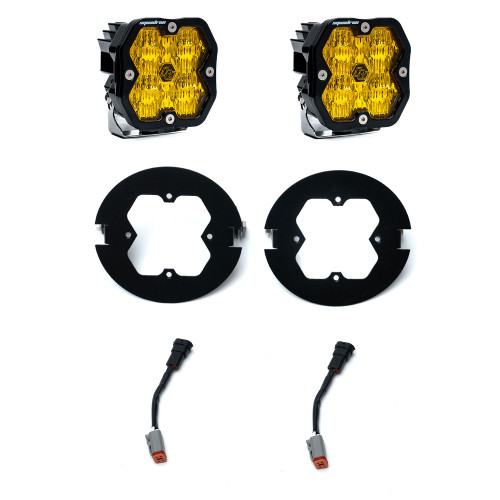

Included:

• x2 Ford/Toyota, Tundra, Tacoma Fog Light Bracket


• x2 Squadron Sport, LED Wide Cornering


• x2 Harness adapter

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
