BuiltRight Dash Mount Kit: 21-25 F-150 & Raptor

Dash Mount Kit for 21-25 F-150 & Raptor

You might be on the go, but you're not off the grid. The BuiltRight Industries Dash Mount is the original and was designed to give you the ability to organize and position your phone and other devices exactly where you need them. The rigid, durable mounting point is ideal for all types of accessories. And with room for multiple mounts, you don't have to compromise. You can keep your mind at ease and your eyes on the road.

• Standard Model: The standard model is sufficient for most users, bolting to the rigid plastic tray on the dash. The lower support bracket is NOT included.
• Pro Model: The pro model offers additional rigidity as the only Dash Mount that includes a lower support plate which ties into the actual dash structure. The lower bracket is installed first and the Dash Mount is then bolted directly to it through the plastic tray.

The BuiltRight Industries Dash Mount provides a rigid, durable mounting point for all types of accessories. With room for multiple mounts, users can attach and configure their devices with infinite adjustability. The Dash Mount was born from the lack of phone mounts that give you the ability to position your device where you want. The slots used in the design are sized to accommodate AMPS standard attachments.

The bracket is manufactured from 12ga mild steel and finished with a durable black texture powder coat -- a very close match to the OEM dash finish. Each kit contains the Dash mount bracket and all necessary hardware. Also included are printed instructions and a BuiltRight sticker!

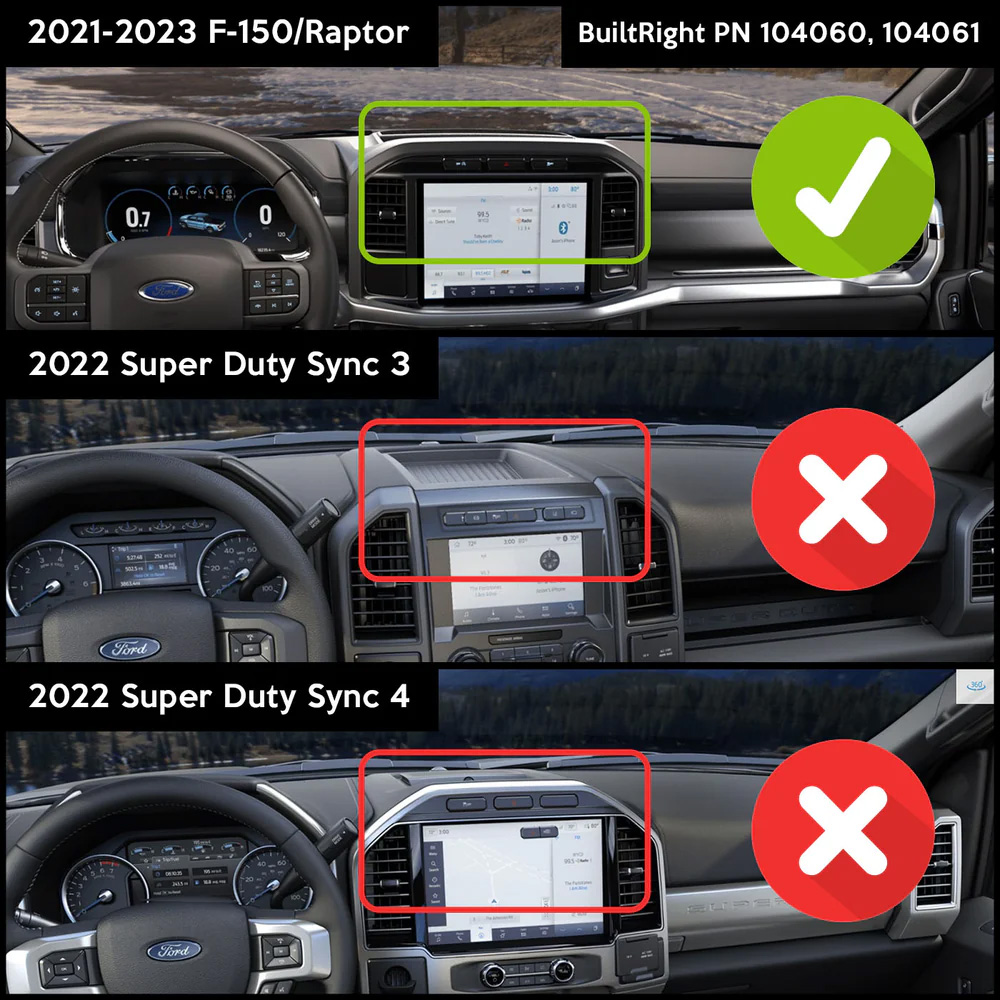

Fitment

INSTALLATION

Installation is very straight forward. The laser cut and CNC formed bracket attaches to the dash structure below the tray located above the dash using existing hardware. A series of small holes are drilled in the OEM tray before it's replaced and then the lower bracket is installed. Once the lower bracket is installed, the top plate can be configured with your choice of mounts and then installed. Expect to spend 20-30min on this project.
