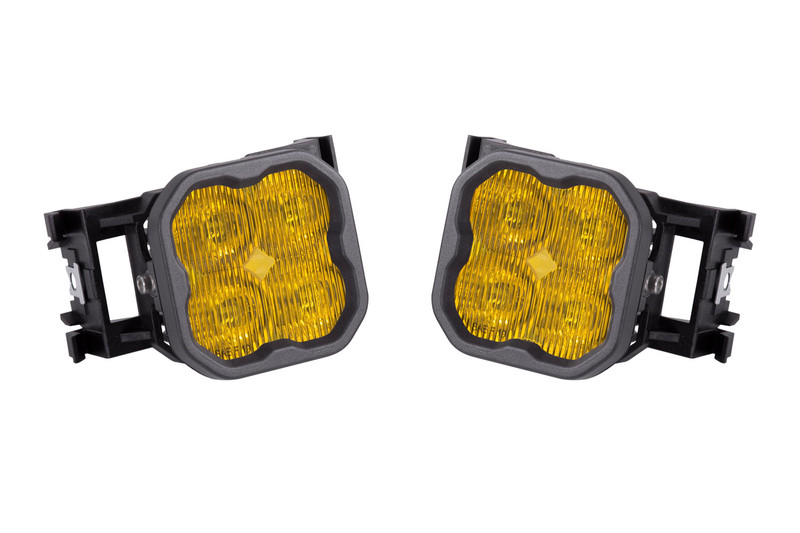

Diode Dynamics - SS3 Type X LED Fog Light Kit Yellow SAE/DOT Fog Sport - DD6547

Upgrade your fog lights with our SS3 Type X Fog Light Bracket Kit! Featuring higher output intensity than any other 3 inch light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. With the included custom bracket with bezel the SS3 Fog Kit has a clean factory-style appearance only much brighter!

Plug and Play. Thanks to custom-molded brackets the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

From there while other options on the market lose as much as 10 percent of the light output shining through an outer lens the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature when coupled with high-intensity LED chips the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling to shape the output in a highly-functional beam pattern.

SAE Driving is designed to supplement your high beams but it's great for general illumination as well. Rather than a traditional spot pattern the Stage Series Driving pattern shines in an 18x8 degree spread providing just enough width to fully illuminate the road ahead at high speeds.

SAE Fog provides an extremely wide field of view with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow which is often said to help cut through inclement weather.

When installed as a pair and aimed in accordance with your state's regulations the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light and the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use. Please check your local laws and regulations for aiming installation and applicability.

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature which is a true cool white output and matches most factory LED lighting. The selective yellow is a 3000K color temperature great for high contrast in poor weather or a distinctive look on the road.

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters and TIR optics for unmatched focus and overall output. However the Pro option is double the amount of total power.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F along with vibration moisture intrusion and corrosion testing. All of these tests are completed to SAE standards just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States allowing for higher quality and performance with the newest and brightest LED technology. No matter what you're driving we pride ourselves in offering only the best possible LED solutions.

Features:

• Advanced TIR optics provide high efficiency and focus


• SAE-compliant road-legal output


• Includes custom bracket for factory-style appearance


• Plug and play no modification needed


• Durable powdercoated aluminum extrusion


• Engineered and Assembled in USA

Details:

• Series Stage Series


• Location Front


• Warranty 8 year warranty


• Sold As Pair


• Country of Origin USA


• Finish Powdercoat


• Size 3.0 Inch


• Beam Angle Fog 80 Degrees x 8 Degrees


• Lumens 1,300 Lumens


• Color Temp 3000 Kelvin


• Peak Beam Intensity 9,050 Candela


• Input Power 14.5 Watts


• Operating Voltage 9-16 Volts


• Operating Temperature -40 Degrees Celsius-85 Degrees Celsius


• Intrusion Rating IP67 Weatherproof


• Compliance Rating SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern


• LED Emitter Luxeon Z ES


• Connectors Deutsch DT Input


• Driver Features Constant Current


• Materials Polycarbonate Lens Aluminum Casting Rubber Gasket


• Cooling Feature Passive Pin-Fin Heatsink

Included Quantity:

• Pair (Left and Right Side)
