Diode Dynamics '24 Tacoma SS5 Grille CrossLink Lightbar Kit (Sport, White) - DD8027

'24 Tacoma SS5 Grille CrossLink Lightbar Kit | Sport (White)

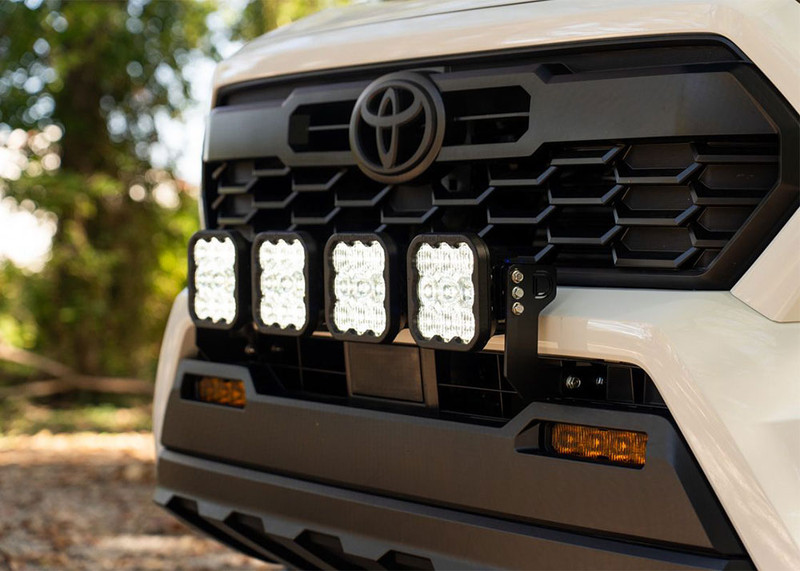

Perfect Fitment. The Grille CrossLink Lightbar Kit for the 2024 Toyota Tacoma from Diode Dynamics allows you to mount four linked SS5 LED pods in front of the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points for straightforward installation.

Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market, these auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.

Selectable Backlight. The SS5 LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you're not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow Kit is only available with an Amber backlight color.

CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. Unlike other options on the market that use multiple pieces to link pods together, we have designed a single-piece CNC aluminum link. This provides extreme rigidity, but is fully adjustable, for both straight and curved configurations. And thanks to inset threaded mounts built-in to every SS5, there is no need to buy a special linking version of the SS5 for your setup.

Functional Output. Stage Series beam pattern options were designed with advanced optical simulation modeling, to shape the output in highly-functional beam patterns with high efficiency.

Combo pattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance, and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.

White or Yellow. This kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Interchangeable Lens. Need a different beam pattern or color? You can swap it yourself! We offer replacement lenses that allow you to change the color or optic of your SS5 Pods.

Sport or Pro. This kit is available at two different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses nine high-intensity LEDs for 40W of total power. The Pro model steps things up in a big way, with double the total power at 90W. Click the Specifications tab to see more information.

Snap-on Covers. For states that require them, we also offer snap-on covers for your SS5 Pod. These covers are available in a variety of colors and keep your SS5 Pod clean and protected from dirt, dust, or whatever else the road throws your way!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185° F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

Features

• Bolt-on fitment


• Allows you to mount a four-pod CrossLink lightbar across the grille


• Ultra-high intensity, with custom-engineered TIR optics


• Selectable backlight color, with eight color options


• Control through factory aux switch bank using the included harness


• Utilizes existing mounting points for easy installation


• Assembled in USA

In the Box

• Four (4) Heavy-Duty Steel Brackets


• Four (4) SS5 LED Pods


• Three (3) CrossLinks with Hardware


• One (1) CrossLink Endmount Kit


• One (1) DT 4-Pod Connecting Harness


• One (1) Heavy Duty Single-Output Harness


• Installation Guide

Specifications

NOTE: Specifications listed here are for each individual pod.

• Sport, Combo White



  • Peak Beam Intensity (candela): 81,600 cd


  • Illuminance (lux @ 10m): 820 lux


  • Measured Output (lumens): 3,800 lm


  • Raw Output (lumens): 4,800 lm


  • Output Color: 6000K White






• Pro, Combo White



  • Peak Beam Intensity (candela): 75,700 cd






  • Illuminance (lux @ 10m): 750 lux


  • Measured Output (lumens): 9,600 lm


  • Raw Output (lumens): 9,700 lm


  • Output Color: 6000K White






• Sport, Combo Yellow



  • Peak Beam Intensity (candela): 71,200 cd


  • Illuminance (lux @ 10m): 820 lux


  • Measured Output (lumens): 3,700 lm


  • Raw Output (lumens): 4,800 lm


  • Output Color: 3000K Yellow






• Pro, Combo White



  • Peak Beam Intensity (candela): 58,500 cd


  • Illuminance (lux @ 10m): 750 lux


  • Measured Output (lumens): 7,900 lm


  • Raw Output (lumens): 8,900 lm


  • Output Color: 3000K Yellow






• Main Beam Power (watts): Sport: 40 | Pro: 90


• Backlight Power (watts): White: 3.17 | Yellow: 3.07


• Main Beam Current (amps @ 12.8V): Sport White: 2.75 | Sport Yellow: 2.8 | Pro: 6


• Backlight Current (amps @ 12.8V): White: 0.25 | Yellow: 0.24


• Color Temp (CCT): 3000K, 6000K


• Beam Angle: Combo (Driving and Flood)


• Operating Voltage: 9-16V


• Polarity: Polarity Specific


• Operating Temperature: -40°C to 85°C (-40°F to 185°F)


• LED Emitter: Luxeon Z ES, Cree XP-L HI


• Connector(s): Deutsch DT Input


• Driver Features: Constant Current


• Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket


• Cooling: Passive, Pin-Fin heatsink


• Intrusion Ratings: IP69K Waterproof, High Pressure


• Quantity: One (1)


• Product Weight: 18 lbs.


• 100% Satisfaction Guarantee


• Warranty: 8 year warranty

Fitment Note: If equipped with a front camera, this kit may partially block the camera view.

Installation

We recommend adding Loctite to the long-end bolts to prevent the bolts from loosening after installation.

• Installation Time: 3-4 hours


• Tools Needed: Basic Toolset


• Modification: Minor Modification
