Diode Dynamics SS5 Stealth Grille LED 4-Pod Kit: 14+ 4Runner (Pro Yellow Combo) - DD7545

4Runner SS5 Stealth Grille LED 4-Pod Kit: Pro/Yellow/Combo

Perfect Fitment. The SS5 Stealth Grille LED Pod Kit compatible with Toyota 4Runner 2014+ from Diode Dynamics allows you to mount two to four Stage Series 5" LED pods behind the factory grille without interfering with the Safety Sense feature! These application-specific brackets were CAD-designed to bolt on using factory mounting points on the factory bumper. No cutting or drilling required!

Choose Your Look. The brackets included with this kit were designed for full customization. They feature multiple mounting holes, so you can mount two or four SS5 LED pods behind your grille and achieve the look you're after. The best part is this kit will not interfere with the Toyota Safety Sense. If your 2014-2019 Toyota 4Runner does not come equipped with Toyota Safety Sense, you have the option to mount an additional fifth SS5 LED Pod Light in the center of the crossbar for even greater output!

Control Through Switches. A toggle switch adapter wire is included with the harness which allows you to mount a three-way switch. For those with an aftermarket aux switch bank, both options include an aux switch adapter wire that connects to the harness and allows you to control your lights using an aftermarket aux switch bank. Two switches will be used - one for the main beam, and one for the backlight.

Mounting Options. This kit is available in a two or four-pod configuration which will not interfere with the Toyota Safety Sense feature. If your 2014-2019 Toyota 4Runner does not come equipped with Toyota Safety Sense, you can mount an additional fifth SS5 LED Pod Light on the center of the crossbar for even greater output!

Designed for Performance. Featuring the highest output intensity of any 5" LED pod on the market, these auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package. All SS5 LED Pods are assembled right here in the USA with quality in mind. The brackets included with this kit are made of durable powder coated steel and have been precision tested with load simulation to ensure your SS5 Pod Lights will not vibrate while you're off-road.

Selectable Backlight. The Stage Series 5" LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you're not using the main beam. Selecting your backlight color is easy -- simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods.

Note: The Yellow kit is only available with an Amber backlight color.

Features

• Bolt-on fitment compatible with Toyota 4Runner 2014+


• Allows you to mount two to four SS5 pods behind the grille


• Ultra-high intensity with custom-engineered TIR optics


• Selectable backlight color with eight color options


• Torture-tested heavy-duty construction


• SS5 Pods are assembled in the USA

Specifications

• Beam Angle: Combo (Driving and Flood)


• Measured Output (lumens): 7,900 lm


• Color Temp: 3000K


• Intensity (lux): 75,000 cd


• Input Power (watts): Main Beam: 90, Backlight: 3.07


• Operating Voltage: 9-16V


• Operating Temperature: -40°C to 85°C (-40°F to 185°F)


• Intrusion Rating: IP69K Waterproof High Pressure


• Compliance Rating: SAE J575 Durability Test


• LED Emitter: Luxeon Z ES


• Connectors: Deutsch DT Input


• Driver Features: Constant Current


• Physical Materials: Polycarbonate Lens Aluminum Casting Rubber Gasket


• Cooling Feature: Passive Pin-Fin heatsink


• Warranty: 8 Years

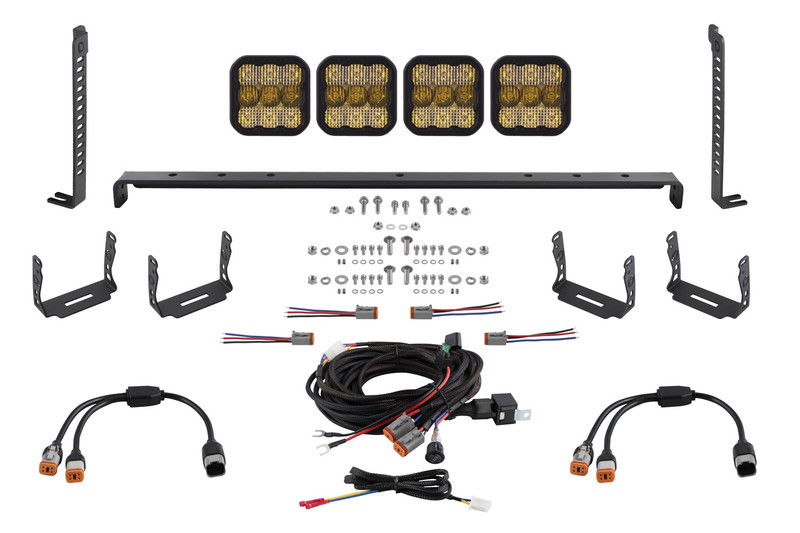

Included in the Box

• Four (4) Stage Series 5" LED Pods


• Two (2) Heavy Duty Steel Brackets


• One (1) SS5 Crossbar Mount


• One (1) Heavy Duty Dual-Output Wiring Harness


• Two (2) DT 4-Pin Splitter Harnesses


• Installation Guide

Fitment Notes

• This kit is NOT compatible with the Limited or Nightshade trim levels.


• Make/Model: Toyota 4Runner


• Years: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
