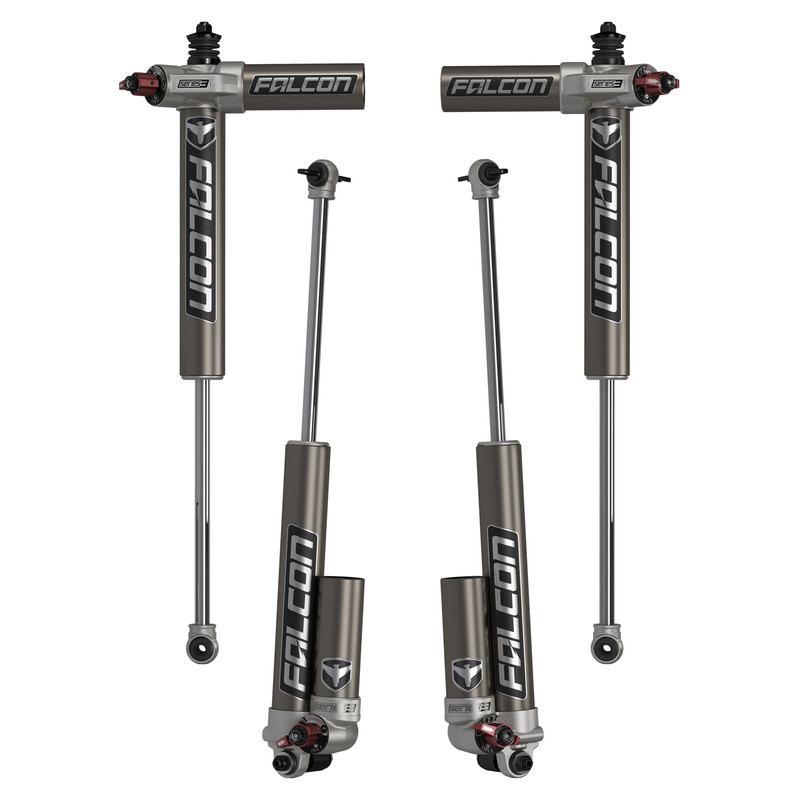

Falcon Shocks Jeep JK 4 Door Falcon Series 3.3 Fast Adjust Piggyback Shock Kit 1.5-2.5 inch Lift - 03-01-33-400-002

Falcon Series 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability with their easy-to-use 3-position Fast Adjust Knob. Settings include Soft, Custom, and Firm.

The Custom setting incorporates an 8-Position Dial for more precise tuning. High-Value Performance inch is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs.

These Jeep-specific shock absorbers deliver increased stability, improved ride quality, and comfort for daily driven vehicles as well as race-inspired performance, handling, and stability for off-road rigs. Falcon Performance Shocks by TeraFlex.

Series 3.3 Fast Adjust Piggyback Shocks:

• Series 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability for specific terrain and/or handling characteristics


• Fast Adjust Knob w/ 3 compression settings for large damping adjustments


• Settings include: Soft, Custom, Firm Custom setting

Includes:

• 8-Position Dial for finer damping adjustments


• Ideal for daily-driven Jeeps as well as the serious enthusiast wanting to adjust damping for all driving conditions

JK Falcon Shocks:

• JK corner-specific shock absorber w/ race-inspired performance


• Front upper offset stud design provides maximum shock body to frame clearance during articulation


• Outboard mounting increases clearance for lifted vehicles w/ raised track bar brackets


• Rear shock body (all) and reservoir (piggyback) positioned on bottom eliminates shaft damage from rocks kicked up by the tires


• Rear Shock Skid Plates available separately

Falcon Series 3 Piggyback Shocks:

• Piggyback design increases oil and gas capacity for reduced heat


• Flows 6x more oil than restrictive reservoir hose designs


• Eliminates common leakage issues found in banjo and swivel fittings


• Front shocks' unique horizontal piggyback reservoir increases tire clearance


• Cartridge Upgrade Kits are available separately - contact customer service for details

Features and Benefits:

• Falcon Performance Shocks (all):


• Vehicle-specific shock absorbers


• Race-inspired performance for increased vehicle stability Improved dynamic roll control and low-speed damping


• Dramatic improvement in on-road comfort and off-road performance


• Optimized fitment for unobstructed suspension travel and articulation 2.3 inch shock body provides optimal performance 6061-T6 aluminum alloy shock body resists Impact to protect internal components


• Smooth honed internal shock body surface for long-term performance 3/4 inch induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling


• Large shaft diameter provides a wide range of adjustment on adjustable shocks


• Hard anodized 6061-T6 aluminum alloy billet piston 1-piece Teflon bronze piston wear band w/ O-ring


• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume


• VOD reduces shock bottoming at full compression or over uneven terrain


• OGS (Oil/Gas Separator) prevents cavitation High-viscosity, full synthetic Red Line shock oil for consistent performance across all temperatures


• Synthetic formula also contains special anti-wear and lubricity agents


• 1,000-hour salt spray corrosion resistance test on all hardware


• Serviceable and rebuildable (factory serviced)


• Designed, engineered, and assembled in-house from domestic and globally sourced components


• Patented design


• 3-year warranty

Includes:

• Series 3.3 Fast Adjust Piggyback Shocks - all 4 All necessary hardware

Vehicle Fitment Info

• JK Wrangler Unlimited (4-door) 1.5-2.5 inch Lift

Product Notes

Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders - See instructions for proper configuration for your application.

Related Items

Configurations:

JK 2-Door: 1.5-2.5 inch Lift (02-01-33-400-002) 3-4.5 inch Lift (02-01-33-400-253) 5-6 inch Lift (02-01-33-400-406) JK 4-Door: 1.5-2.5 inch Lift (03-01-33-400-002) 3-4.5 inch Lift (03-01-33-400-253) 5-6 inch Lift (03-01-33-400-406) JK: Falcon Series 3.3 Fast Adjust Cartridge Upgrade Kit (00-10-33-400-160)

Install Time

• 1.5 Hours
