Falcon Shocks Jeep JL 4 Door Falcon SP2 3.3 Fast Adjust Piggyback Shock Kit 0-1.5 inch Lift - 11-02-33-400-000

Falcon SP2 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability with their easy-to-use 3-position Fast Adjust Knob. Settings include Soft, Custom, and Firm. The Custom setting incorporates an 8-Position Dial for more precise tuning.

High-Value Performance inch is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs. These Jeep-specific shock absorbers deliver increased stability, improved ride quality, and comfort for daily-driven vehicles as well as race-inspired performance, handling, and stability for off-road rigs.

Falcon Performance Shocks by TeraFlex. SP2 3.3 Fast Adjust Piggyback Shocks: SP2 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability for specific terrain and/or handling characteristics

Fast Adjust Knob w/ 3 compression settings for large damping adjustments Settings include: Soft, Medium, Firm Custom setting

Includes:

• 8-Position Dial for finer damping adjustments


• SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings


• Ideal for daily-driven Jeeps as well as the serious enthusiast wanting to adjust damping for all driving conditions


• JL Falcon Shocks: JL corner-specific shock absorber w/ race-inspired performance


• Front lower offset eyelet design provides maximum shock body to frame clearance during articulation


• Rear roost guards prevent shock shaft damage from rocks kicked up by the tires


• SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings

Falcon Series 3 Piggyback Shocks:

• Piggyback design increases oil and gas capacity for reduced heat Flows 6x more oil than restrictive reservoir hose designs Eliminates common leakage issues found in banjo and swivel fittings Front shocks' unique horizontal piggyback reservoir increases tire clearance Cartridge Upgrade Kits are available separately - contact customer service for details

Features and Benefits:

• SP2 Mode Adjust Shocks: Choose between Soft and Performance modes during install


• Tunes both compression and rebound Soft mode allows a partial bypass of the main piston for a softer ride


• During aggressive driving, Soft mode retains performance tuning for optimal handling


• Soft mode recommended for rough terrain/surfaces and cold weather


• Performance mode recommended for max on- and off-road handling, stability, and control


• Falcon Performance Shocks (All): Vehicle-specific shock absorbers


• Race-inspired performance for increased vehicle stability


• Improved dynamic roll control and low-speed damping


• Dramatic improvement in on-road comfort and off-road performance


• Optimized fitment for unobstructed suspension travel and articulation


• 2.3 inch shock body provides optimal performance


• 6061-T6 aluminum alloy shock body resists Impact to protect internal components


• Smooth honed internal shock body surface for long-term performance


• 3/4 inch induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling


• Large shaft diameter provides a wide range of adjustment on adjustable shocks


• Hard anodized 6061-T6 aluminum alloy billet piston


• 1-piece Teflon bronze piston wear band w/ O-ring


• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume


• VOD reduces shock bottoming at full compression or over uneven terrain


• OGS (Oil/Gas Separator) prevents cavitation


• High-viscosity, full synthetic


• Red Line shock oil for consistent performance across all temperatures


• Synthetic formula also contains special anti-wear and lubricity agents


• 1,000-hour salt spray corrosion resistance test on all hardware


• Serviceable and rebuildable (factory serviced)


• Designed, engineered, and assembled in-house from domestic and globally sourced components


• Patented design


• 3-year warranty

Includes:

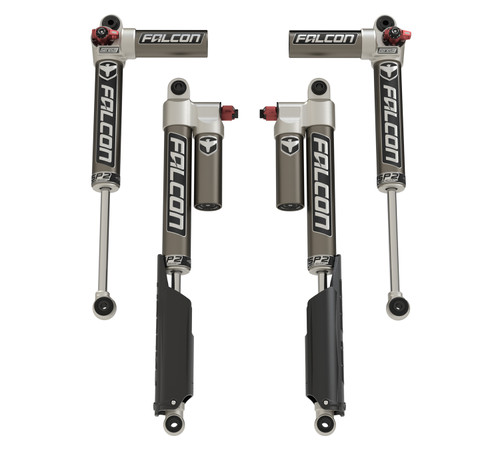

• SP2 3.3 Fast Adjust Piggyback Shocks - all 4


• Rear roost guards - pair


• All necessary hardware

Vehicle Fitment Info

• JL Wrangler Unlimited (4-door)


• 0-1.5 inch Lift


• Does Not fit EcoDiesel models

Product Notes

Does Not fit EcoDiesel models. Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders - See instructions for proper configuration for your application. May require 2 inch Bump Stop Strike Pad Extension Kit (1959500) and/or 0.5 inch Bump Stop Strike Pad Shim Kit(s) (1959300).

Configurations:

JL 2-Door: 0-1.5 inch Lift (10-02-33-400-000) 2-4.5 inch Lift (10-02-33-400-200) JL 4-Door: 0-1.5 inch Lift (11-02-33-400-000) 2-4.5 inch Lift (11-02-33-400-200)

Install Time

• 1.5 Hours
