Falcon Shocks Jeep JL 4 Door Falcon SP2 3.5 aDAPT Piggyback Shock Kit 0-1.5 inch Lift - 11-04-35-400-000

Gain more control over your suspension tuning with the Falcon SP2 3.5 aDAPT Piggyback Shocks! In addition to the 8-Position Dial, these shocks can be programmed to automatically switch from Soft to a manually preselected Firm setting depending on terrain. The aDAPT Control Module's 3-position In-Cab Switch

Includes:

• Soft, Firm, and Auto settings. SP2 3.5 aDAPT Piggyback Shocks offer a wide range of adjustability for specific terrain and/or handling characteristics


• In Auto Setting, the aDAPT Control Module automatically switches from Soft to a manually preselected Firm setting based on driver selectable minimum G threshold The desired Firm setting is controlled manually by the 8-Position Dial aDAPT Control Module adjustment parameters: forward acceleration, lateral acceleration, braking


• Each parameter is set separately Firm mode duration can be set between 1-5 seconds 3-position


• In-Cab Switch settings include: Soft, Firm, Auto Can also be manually adjusted from Soft to preset Firm setting Using the Falcon App, multiple presets can be created and used for different driving conditions


• Calibrate aDAPT Control Module for various install orientations


• SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings


• Ideal for daily driven Jeeps as well as the serious enthusiast wanting automatic control and advanced tuning options from the driver seat


• JL: JL corner-specific shock absorber w/ race-inspired performance


• Front lower offset eyelet design provides maximum shock body to frame clearance during articulation


• Rear roost guards prevent shock shaft damage from rocks kicked up by the tires

Piggyback: Piggyback design increases oil and gas capacity for reduced heat Flows

• 6x more oil than restrictive reservoir hose designs


• Eliminates common leakage issues found in banjo and swivel fittings


• Front shocks' unique horizontal piggyback reservoir increases tire clearance

Features and Benefits:

• SP2 Mode Adjust: Choose between Soft and Performance modes during install


• Tunes both compression and rebound


• Soft mode allows a partial bypass of the main piston for a softer ride During aggressive driving, Soft mode retains performance tuning for optimal handling


• Soft mode recommended for rough terrain/surfaces and cold weather


• Performance mode recommended for max on- and off-road handling, stability, and control

Jeep Performance Shocks: Vehicle-specific shock absorbers

• Race-inspired performance for increased vehicle stability


• Improved dynamic roll control and low-speed damping


• Dramatic improvement in on-road comfort and off-road performance


• Optimized fitment for unobstructed suspension travel and articulation


• 2.3 inch shock body provides optimal performance


• 6061-T6 aluminum alloy shock body resists Impact to protect internal components


• Smooth honed internal shock body surface for long-term performance


• 3/4 inch induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling


• Large shaft diameter provides a wide range of adjustment on adjustable shocks


• Hard anodized 6061-T6 aluminum alloy billet piston 1-piece Teflon bronze piston wear band w/ O-ring


• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume


• VOD reduces shock bottoming at full compression or over uneven terrain


• OGS (Oil/Gas Separator) prevents cavitation High-viscosity, full synthetic


• Red Line shock oil for consistent performance across all temperatures


• Synthetic formula also contains special anti-wear and lubricity agents


• 1,000-hour salt spray corrosion resistance test on all hardware


• Serviceable and rebuildable (factory serviced)


• Designed, engineered, and assembled in-house from domestic and globally sourced components


• Patented design


• 3-year warranty

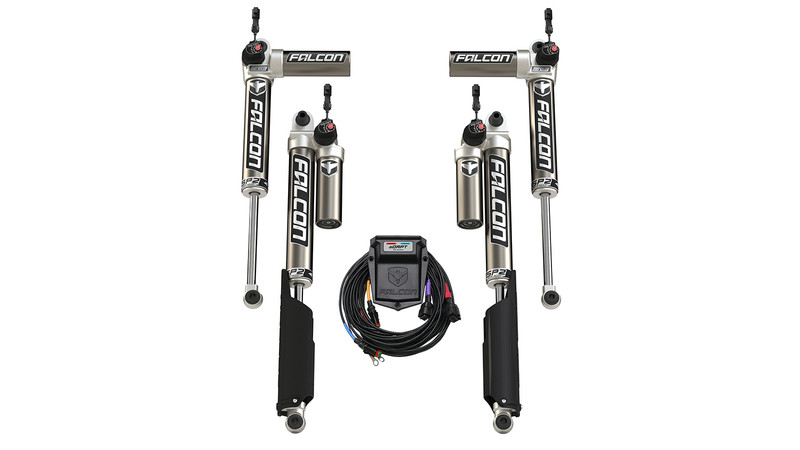

Includes:

• SP2 3.5 aDAPT Piggyback Shocks - all 4


• aDAPT Control Module


• In-cab switch and wiring


• Rear roost guards - pair


• All necessary hardware

Vehicle Fitment Info

• JL Wrangler Unlimited (4-door)


• 0-1.5 inch Lift


• Does Not fit EcoDiesel models

Product Notes

Does Not fit EcoDiesel models. Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders - See instructions for proper configuration for your application. May require 2 inch Bump Stop Strike Pad Extension Kit (1959500) and/or 0.5 inch Bump Stop Strike Pad Shim Kit(s) (1959300).

Configurations:

JL 2-Door: 0-1.5 inch Lift - All 4 (10-04-35-400-000) 2-4.5 inch Lift - All 4 (10-04-35-400-200) JL 4-Door: 0-1.5 inch Lift - All 4 (11-04-35-400-000) 2-4.5 inch Lift - All 4 (11-04-35-400-200)

Install Time

• 1.5 Hours
