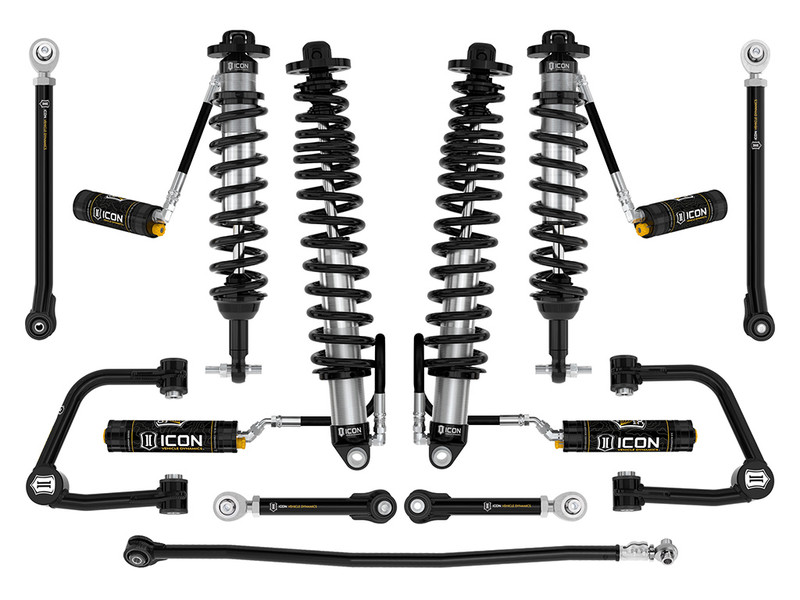

ICON Stage 7 Suspension System - Tubular - 2-3" Lift - K40017T - 2021+ Bronco (Sasquatch)

ICON VEHICLE DYNAMICS 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 7 SUSPENSION SYSTEM TUBULAR - K40017T

This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately).

• Improved suspension performance and ride quality over stock
• Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
• Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
• Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Adjustable coilovers yield up to 2-3" of front lift height and 1.25-2.25” of rear lift height over stock 4-door Broncos with the Sasquatch package
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
• ICON engineered coil springs featuring a unique triple rate rear coil design
• High strength alloy CNC machined lower bar pins
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
• Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
• Adjustable tubular rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
• Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Additional Information: Recommended Aftermarket Wheels: ICON Alloys
