KC FLEX ERA 1 Backup Light Kit, Standard - 0520

FLEX ERA® 1 Standard Backup Light Kit

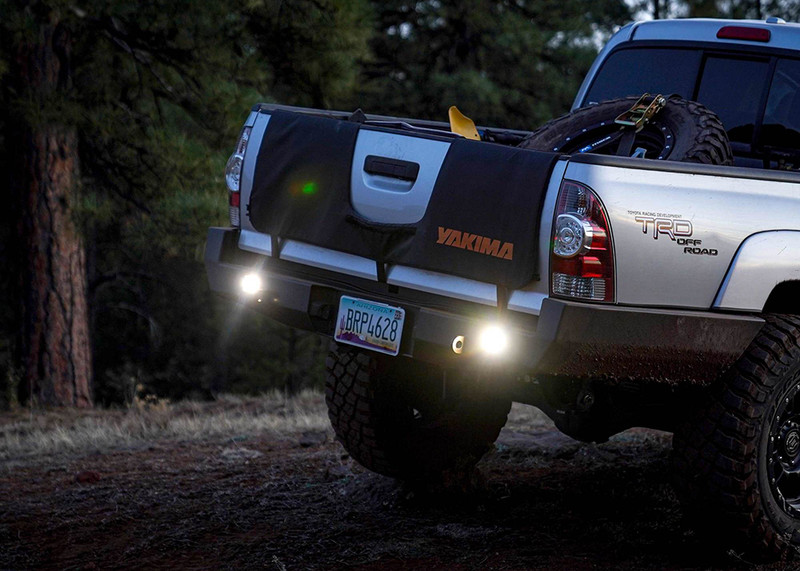

Looking to mount backup lights to your vehicle? The KC FLEX ERA® 1 Flush Mount Backup Light Kit is a one-stop solution for everything needed from lights to wiring to mounts all in one convenient package.

Featuring the powerful and compact FLEX ERA® 1, this kit pairs two FE1s pre-assembled in a spread beam pattern and a universal, bottom-mount bracket with a specially designed, extended-length backup harness to make the installation a breeze. Our KC FLEX ERA® 1 Standard Backup Light Kit is perfect for those installing into a rear bumper with cutouts for reverse lights or dust lights.

FEATURES

• 2x FLEX ERA® 1 Lights in Spread Beam


• Two Power Modes for Style and Performance



  • Amber LED Backlight


  • Full Power (off-road use only)






• Black powder coated for ultimate durability and strength


• Compact Size for Bumpers with Light Cutouts

IDEAL FOR

• Illuminating Immediate Areas as a Work Light


• Shining Backwards as a Backup/Reverse light


• Rear Facing Dust Light when paired with the FE1 Performance Yellow Lens

PARTS INCLUDED

• 2x FLEX ERA® 1 Lights in Spread Beam


• 1x Complete Wiring Harness for FLEX ERA Backup/Reverse Lights

FLEX ERA® 1 LIGHTS

Contained in a compact size of less than 2.7", the FLEX ERA® 1 packs major performance in a versatile package for rear-facing lighting. They feature dual power modes; one mode is for the full, high-power output, and the other illuminates an eclipse-like amber backlight.

CUSTOMIZABLE and FLEXIBLE

We get it, everyone loves to personalize their rig. That's why we stuck with our tried and true FLEX LED® tradition and ensured that you can change and stylize the colored accent bezel to match your rig. The FE1 bezels come standard in gold, but you can pick up the bezels in deep red, rich blue, or gloss black to suit your needs.

SPECIFICATIONS

• Mount Location: Bumper, Overhead/Roof, Rear/Trunk, Roof


• Type: FE1


• Series: FLEX ERA


• In the Box: 2x KC FLEX ERA® 1 LED Lights with Spread Lens, Extended Wiring Harness with Weatherproof Connectors, 3-position Switch, 2x Mounting Bracket, 2x KC Covers, and Mounting Hardware


• Beam Pattern: Spread


• Lumens: 2,430 lm


• LUX @ 10m: 162 lx


• Candela: 16,200 cd


• Beam Distance: 127.3m


• Wattage: 5W (Amber Backlight) / 23W


• Voltage: 9V-36V


• Amp Draw: 0.83 a / 3.83 a


• Light Temperature: 5000K


• Lens Color: Clear


• Light Color: Amber / White


• Housing Finish: Black


• Housing Material: Aluminum Alloy


• Dimensions (WxHxD): 2.6 x 2.72 x 2.9 in.


• Weight: 5 lbs.


• DOT Compliant: No


• SAE/ECE: No


• IP Rating: IP68


• Prop 65: No


• Part Number: 0520


• UPC: 084709005207
