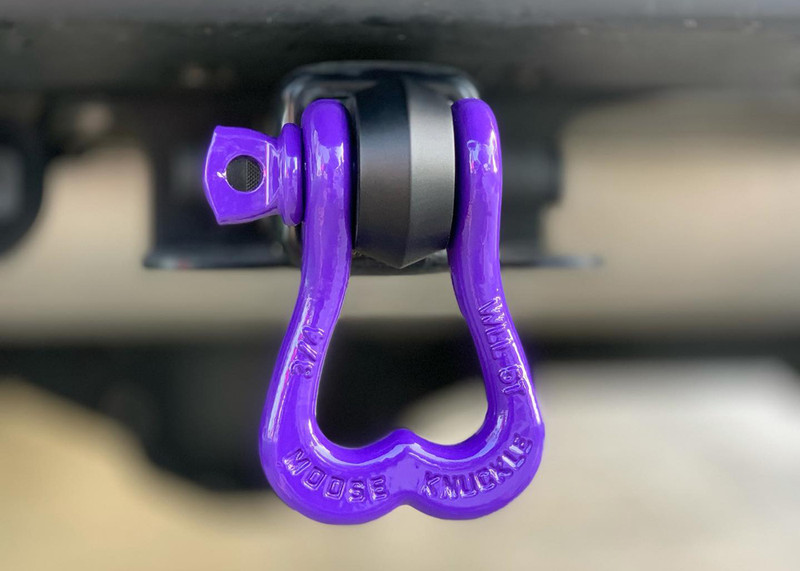

Moose Knuckle 3/4 B-Ring XL Shackle

3/4" B-Ring XL Shackle

This Powder Coated Patented "man shaped" tow shackle has a 10,000 lb. work load limit and is designed to make your next tow easier. The unique "B-Ring" shape prevents your snatch or recovery rope from over tightening. A divider on the inside of the tow shackle doesn't allow a slip knot to slide together making removal easier. This divider also helps with keeping space when two hooks, chains or master links are attached. A gap on the bottom outside allows for insertion of a screw driver or pry bar in the event that a slip knot or rope does get tightened into a stuck position. You can easily pry it loose instead of having to beat on it with a hammer. Moose Knuckles are also a great solution to the widely prohibited Truck Nuts and provide a functional yet legal alternative to hanging plastic balls from the hitch receiver of your vehicle.

The Moose Knuckle XL fits any 2" or 2.5" D-Ring tow shackle receiver hitch bracket mount with a 7/8" (0.875") pin hole and a mount width of 1-1/4" (1.25") or less.

All color options are fully covered with a durable coating pantone color matched to popular truck and Jeep colors. Sold as single shackle.

Color Specs

• Brass Knuckle - Brass Coated (Metallic)


• Nice Gal - Galvanized (Metallic)


• Black Hole - 100% Black (Gloss)


• Pure White - 100% White (Gloss)


• Gun Gray - PMS 425C (Matte)


• Detonator Yellow - PMS 7549C / Jeep Yellow (Gloss)


• Flame Red - PMS 1795C / Jeep Red (Gloss)


• Sublime Green - PMS 368C / Jeep Green (Gloss)


• Pretty Pink - PMS 7423C (Gloss)


• Blue Balls - PMS 2728C / Jeep Blue (Gloss)


• Grape Escape - PMS Purple C (Gloss)


• Obscene Orange - PMS 165C / Jeep Orange (Gloss)


• Raw Dog - Uncoated (see warning below, will rust if left uncoated)

"Raw Dog" Note: The "Raw Dog" uncoated option is ready to add primer and paint or powder coating so you can color match your vehicle or just add any finish of your choosing. Only the Jowl hooked bodies should be powder coated, not the pin. Coating the pin will hinder the assembly functionality. (**Please note: this option will show signs of weathering and rust if left uncoated.**)

Specifications

• Shackle Size Catagory: 3/4 in.


• Dimensions (LxHxW): 5.5 x 1.85 x 4.38 in.


• Weight: 2.95 lbs.


• Width Between Eyes: 1.25 in.


• Thread Size: M22 x 2.5mm - 6H/6g


• Pin Style: Screw


• Pin Diameter: 7/8 in. (0.875 in.)


• Finish: Powder Coated


• Pin Material: Carbon Steel


• Body Material: Carbon Steel


• Ratings




  • Working Load Limit (WLL): 10,000 lbs. or 5T (Tons)


  • Minimum Required Break Strength (MBS): 50,000 lbs.


  • Factor of Safety (FoS) or Design Factor: 5:1






• Break Test Results (Peak Load)



  • Pounds: 59,136 lbs.


  • Tons: 29.6T


  • Metric Tonnes: 26.8t






• PATENT No. D953,845, No. D986,043
