Moose Knuckle Mohawk 1.25 Receiver

Mohawk Receiver 1.25

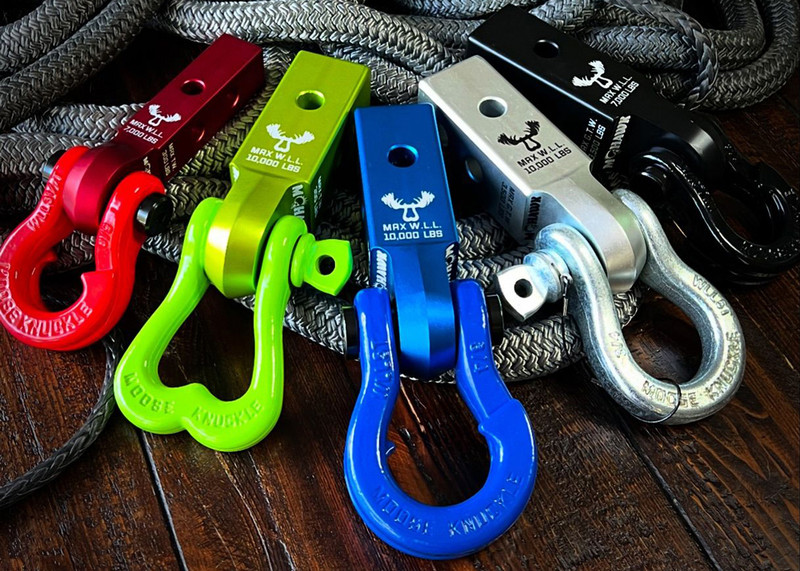

Hang your Moose Knuckle Offroad shackle or tow shackle from our new versatile SxS, ATV and UTV shackle hitch receiver.

The Mohawk 1.25 is warm forged using 6082 aluminum with the grain flow orientated to maximize the strength of your connection point providing a work load limit of 7,000 lbs. Two hitch pin holes allow for two receiver mounting positions increasing compatibility with any 1.25" hitch mounting tube. The third hitch pin hole and included spacer allow you to rotate the receiver 90 degrees so you can mount a hitch ball with a 3/4" shank providing a towing tongue weight limit of 300 lbs. and a gross trailer weight of 3,500 lbs. while accepting a Class I/II hitch ball.

Most shackle receivers have sharp edges at the connection point which often tear soft shackles, synthetic ropes, tree savers and strap looped ends. The Mohawk 1.25 main mounting hole has a very large radius on the outer edges to reduce abrasion and increase the life of your recovery gear making this ideal for use with any closed loop recovery set up. The spined outer perimeter adds more material where you need it most and gives the Mohawk its aggressive and unique identity.

Specifications

• Receiver Size: 1.25"


• Hitch Pin Holes Size: 1/2" (0.50")


• Shackle Compatibility: 5/8" shackles with 3/4" pin diameter using provided spacer and 3/4" shackles with 7/8" pin diameter without provided spacer.


• Material: High Strength Warm Forged 6082 Aluminum


• Coating: UV and Weather Proof Anodized Black w/ Laser etched Logos


• Colors Available: Blue Pill, Black Lung, Red Rum, Bean Green, Atomic Silver


• Dimensions (LxHxW): 6.87 x 2.24 x 1.25 in.


• Weight: 0.88 lbs.


• Ball Hitch Size: Spacer included to accept Class I / II hitch balls with 3/4" shank dia.


• Ratings



  • Working Load Limit (WLL): 7,000 lbs. or 3.5T (Tons)


  • Minimum Required Break Strength (MBS): 35,000 lbs.


  • Factor of Safety (FoS) or Design Factor: 5:1


  • Gross Trailer Weight (G.T.W.): 3,500 lbs.


  • Tongue Weight Limit (T.W.): 350 lbs.
