6 in. Lift Kit, Diesel, 4 Link, C/O Vertex for 08-10 F-250/350 Super Duty
This is the Diesel C/O Vertex version of Rough Country's 6 in. 4-link coilover conversion for the 2008-2010 Ford F-250 and F-350 Super Duty 4WD. Vertex coilovers take the place of the front coil and shock, giving adjustable ride height and a lot more damping control than stock.
Each Vertex coilover is a nitrogen-charged monotube with a 2.5 in. piston, 8 damping settings and its own external reservoir. Fixed upper and adjustable lower control arms form the 4-link, and radius arm drop brackets keep the arm angles right for proper caster.
Features
- Diesel version with the C/O Vertex shock package
- Vertex coilovers with a 2.5 in. piston, nitrogen charge and 8-stage adjustable damping
- Monotube coilover body with an external reservoir
- 56% more fluid capacity than an average reservoir shock, per Rough Country
- Coilover mounts and top-mounted reservoir brackets made from 1/4 in. steel
- 4-link front with fixed upper and adjustable lower control arms
- Radius arm drop brackets for correct caster
- Estimated install time: 6-10 hours
- Limited Lifetime Replacement Warranty
Notes
- Not for dually trucks.
- Rear overload leafs, where the truck has them, have to come off.
- On gas trucks the exhaust may need modifying for front drive shaft clearance.

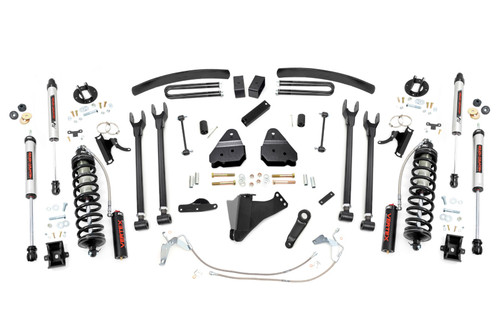

What's Included
- Vertex coilovers
- Fixed upper control arms
- Adjustable lower control arms
- Radius arm drop brackets
- Sway-bar drop brackets
- Track bar drop bracket
- Stabilizer relocation brackets
- Pitman arm
- Brake line brackets
- Bumpstop spacers
- Lift blocks
- Add-a-leafs
- Carrier bearing drop bracket
- U-bolts
- (2) Rear shocks
- Hardware
