Bilstein B8 6112 Suspension Kit, 09-13 F-150 - 47-310698

09-13 F-150 B8 6112 Suspension Kit

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65 in. OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Ride Height Adjustable. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-2.75 in. (depending on application).

Direct Fit. Bolt on and head out. Whether you're headed to work or hitting the trails, our B8 6112 shocks are always a direct-fit installation with hardware included. Less time in the garage, and more time to enjoy your ride.

Large 60mm Design for the Rugged Road Ahead. You choose the destination, we'll get you there. You can be confident knowing that BILSTEIN's large 60mm body and patented digressive valving allow shock absorbers to instantly react to changing surface conditions, giving you a stable, controlled, and comfortable ride on rugged and washed out roads.

Features & Benefits

• Fitment: 09-13 Ford F-150
• Large 60mm body for increased oil capacity, cooling, and long-term durability
• 60mm digressive piston improves ride comfort and control over rough terrain
• Monotube design ensures consistent, fade-free performance in all conditions
• Adjustable spring seat offers 0-2.75 in. of lift, depending on the application
• Custom engineered cold wound linear springs for enhanced vehicle control and ride comfort

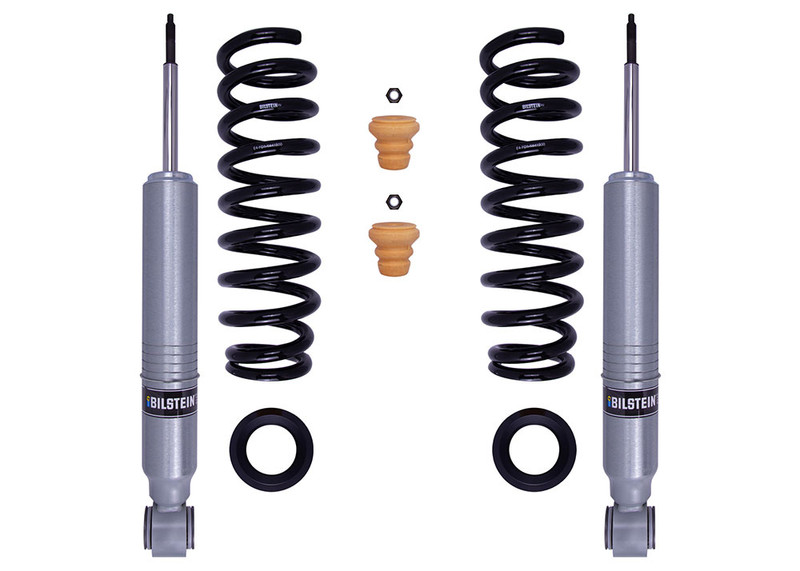

• Kit includes (2) 60mm shock absorbers, (2) billet hard anodized spring seats, and (2) springs
• Available for late model trucks and SUVs which utilize a front coilover suspension
• Vehicle specific tuning
• Made in the USA

Specifications

• Internal Design: Monotube
• Finish: Dampers: Zinc Plated/Springs: Black
• Reservoir: No
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.65 in.
• Piston Diameter: 60mm
• Boot Included: No
• Spring Seat Included: Yes
• Front Main Spring Rate (lbs/in): 500
• Shaft Diameter: 18mm
• Warranty: Limited Lifetime Warranty
