C4 Fabrication Full Skid Plates for 10-24 4Runner

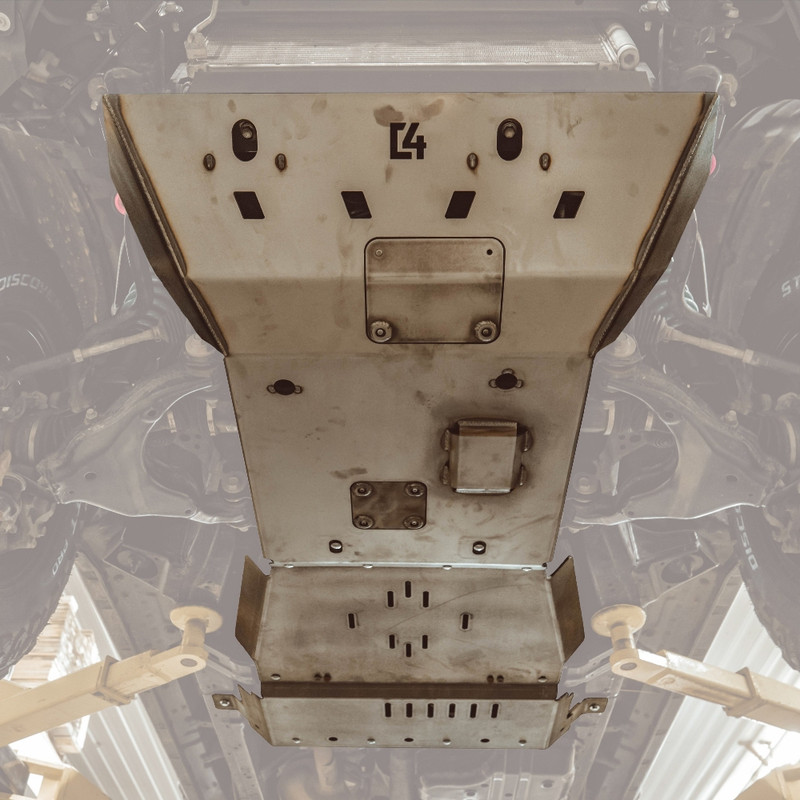

Full Skid Plates for 2010+ 4Runner

The 5th Gen 4Runner Full Skid Plates are built for serious off-road protection, giving your rig the armor it needs to handle rugged terrain. This full set includes front and rear skid plates, designed with wide coverage to safeguard vital components like the engine, transmission, and transfer case. A unique bolt-in crossmember reinforces the setup and maximizes strength around the transfer case, where impacts are most common.

Each skid is crafted from durable 3/16" CNC-cut (P&O) steel, offering uncompromising strength without overcomplicating installation. The 100% bolt-on design makes it straightforward to mount, while the included oil drain and oil filter access covers ensure easy maintenance—no need to remove the whole skid plate for routine oil changes.

Weighing 136 pounds total, the system works with both KDSS and non-KDSS 4Runners, accommodates a 1" differential drop, and is compatible with most aftermarket bumpers. All mounting hardware is included, so you're ready to bolt on protection from front to back. If you choose to purchase these raw, you will need to paint or powder coat the plates before installation to prevent rust.

For the ultimate in under-body protection, add our fuel tank skid plate to your order.

Features

• Three separate skid plates that bolt together to protect the engine, transmission, and transfer case
• Wide coverage to help protect vital engine components
• Unique bolt-in crossmember helps maximize strength and protection for the transfer case
• Includes front and rear skid plates
• Oil Drain and Oil Filter Covers allow for easy oil changes without removing the skid plates
• Made from 3/16" CNC cut P&O steel
• Set weighs 136lb
• Unless you choose our powder coated option, this product will need to be painted or powder coated before installation to prevent rust

Fitment

• Available for KDSS and Non-KDSS 4Runners
• Works with most aftermarket bumpers
• Works with 1" diff drop
• 100% Bolt-On design
