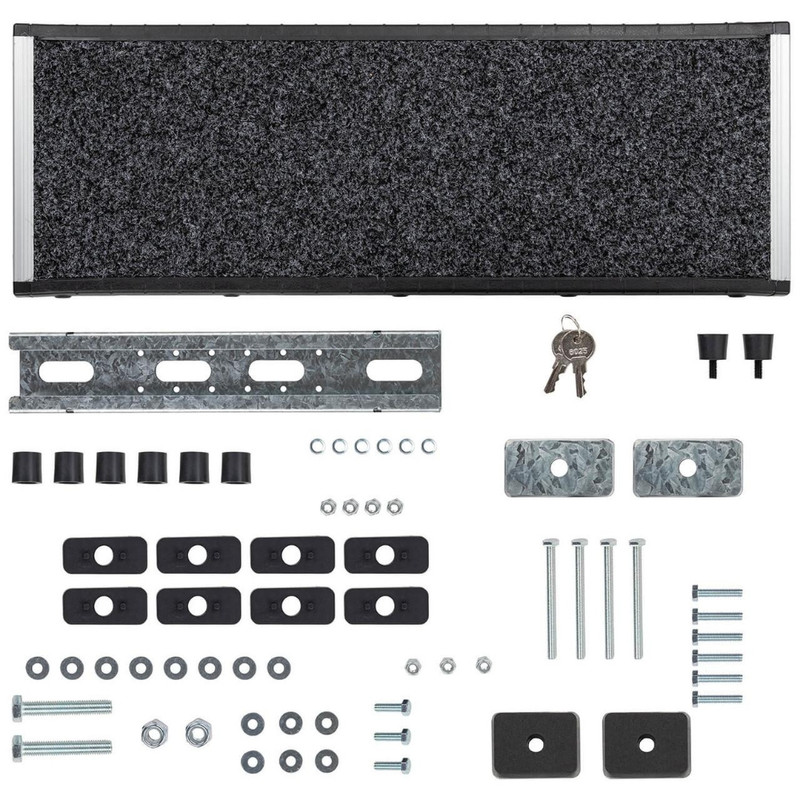

ARB Outback Storage System - Roller Drawer L29"xW20"xH11" - RD745

ARB Outback Solutions Modular Roller Drawer Systems

Completely modular, the Outback Solutions range of drawer systems can be individually tailored to your needs and vehicle. Exclusive to ARB and suitable for many vehicles including SUVs, pick-ups, and trailers, this system can be used in non-vehicle applications such as sheds and warehouses. For convenient storage of items such as recovery equipment and clothing, the traditional style roll out drawer comes with a fixed top. This allows for additional modules to be stacked on top, or provides a flat surface for storing other, larger items.

Roller Drawers (RD)

This traditional roll out drawer, provides 8.5 inches of internal storage height that supports up to 300lbs. The fixed top also allows for additional storage or additional drawers to be stacked on top, rated to 300lbs. ARB Roller Drawers are available in five different sizes.

Roller Floors (RF)

The perfect fridge slide alternative, these small drawers add less than six inches to the height of your vehicle’s floor and provide three inches of storage height. The top slides out which allows for easy access to your fridge or other accessories.

Mid-Height Roller Floor (RFH)

Just like the roller floor but with an extra inch of depth. This provides additional storage without compromising the height of your vehicle’s floor. ARB Mid-Height Roller Floor is the perfect option if you’re stuck between the roller floor and roller drawer roller floor.

Roller Drawer Roller Floor (RDRF)

The Roller Drawer Roller Floors provide the storage of the traditional roller drawer with the feature of the roller floors sliding top. ARB Roller Drawer Roller Floors are available in four different sizes.

• Each ARB Outback Soluitions Module is a single drawer width offering hundreds of configuration options, can be installed as single side by side or staked vertically into SUV’s, Pick-uptruck beds, flat beds, trailers, crew cabs and more.


• Add or change modules at any time offering flexability when needs change.


• Featuring self locking anti roll back system on roller drawers & roller floors. This easy to use with no locking pins offers single handed opperation. Pulling the drawer all the way out to engages the anit roll back mechanism, when engaged it will resist a horizontal closing force of 31 lbs, and to close all it takes is a tap with the palm of your hand.


• Clean modern styling with aluminum edging covers bearings, Durable ploy trim, commercial U.V. stable carpet made in New Zealand, with the drawer and trays lined with automotive carpet.


• Quiet opperation with the purpose built folded stainless steel drawer runners engineered for both on and off-road driving with anti-rattle design. Fully sealed, dust and water resistant for superior longevity working in harsh environments


• Drawers Feature keyed locks with Slam Shut handles offer single handed opperation using an tried and true handle.


• Cross folded drawer floor reinforcement ensures that the drawer will not bow down under load.


• Structural ply top uses water resistant glue offers robust durability.


• Available vehicle specific side floor kit with easy latches completes installation and provides additional storage areas within the cabin or tray


• 2 year manufacturers warranty

Diminsions:

Roller Drawers (RD)

RD745 - External Specs: Length 29″ | Width 20″ | Height 11″ - Internal Specs: Length 25.5" | Width 17" | Height 8.5"
RD845 - External Specs: Length 33″ | Width 21″ | Height 11″ - Internal Specs: Length 29.5" | Width 18.85" | Height 8.5"
RD945 - External Specs: Length 37.2″ | Width 20″ | Height 11″ - Internal Specs: Length 33.5" | Width 17" | Height 8.5"
RD1045 - External Specs: Length 41″ | Width 21″ | Height 11″ - Internal Specs: Length 37.5″ | Width 18.3″ | Height 8.7″
RD1355 - External Specs: Length 53.4″ | Width 20″ | Height 12.2″ - Internal Specs: Length 49.4″ | Width 17.1″ | Height 9.9″

Roller Floors (RF)

RF945 - External Specs: Length 37.2″ | Width 20″ | Height 5.5″ - Internal Specs: Length 33.9″ | Width 16.5″ | Height 3″
RF1045 - External Specs: Length 41″ | Width 21″ | Height 5.5″ - Internal Specs: Length 38.8″ | Width 17.7″ | Height 3″
RF1355 - External Specs: Length 53.4″ | Width 20″ | Height 5.5″ - Internal Specs: Length 50″ | Width 16.5″ | Height 3″

Mid-Height Roller Floor (RFH)

RFH945 - External Specs: Length 37.2″ | Width 20″ | Height 7.5″ - Internal Specs: Length 33.9″ | Width 16.5″ | Height 4.1″
RFH1045 - External Specs: Length 41″ | Width 21″ | Height 7.5″ - Internal Specs: Length 38.8″ | Width 17.7″ | Height 4.1″
RFH1355 - External Specs: Length 53.4″ | Width 20″ | Height 7.5″ - Internal Specs: Length 50″ | Width 16.5″ | Height 4.1″

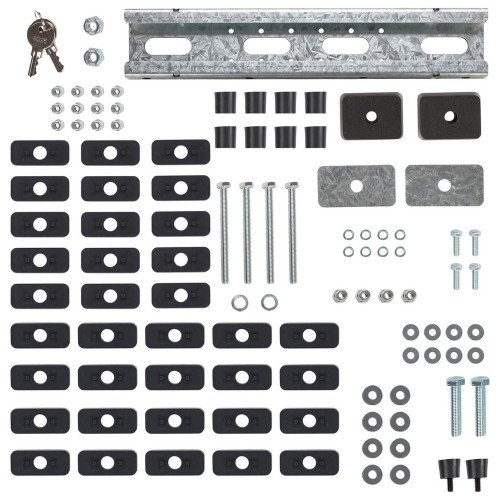

Roller Drawer Roller Floor (RDRF)

RDRF790 - External Specs: Length 31″ | Width 33″ | Height 13″ - Internal Specs: Length 28.7" | Width 25.7" | Height 8.6"
RDRF945 - External Specs: Length 37.2″ | Width 20″ | Height 11″ - Internal Specs: Length 33.5″ | Width 17″ | Height 8.7″
RDRF1045 - External Specs: Length 41″ | Width 21″ | Height 11″ - Internal Specs: Length 37.5″ | Width 18.3″ | Height 8.7″
RDRF1355 - External Specs: Length 53.4″ | Width 20″ | Height 12.2″ - Internal Specs: Length 49.4″ | Width 17.1″ | Height 9.9″
