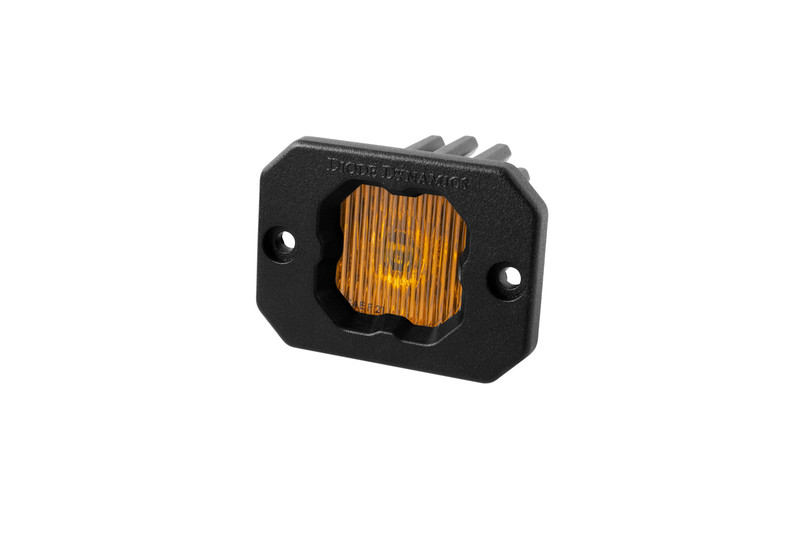

Diode Dynamics - Stage Series C1 LED Pod Yellow SAE/DOT Fog Flush ABL Each - DD6851S

Introducing the Stage Series C1 LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip these pods have been designed for maximum performance and light output in our most compact versatile package yet. The SSC1 can be mounted virtually anywhere on your car truck motorcycle or UTV including spots where larger LED pods won't fit.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the Stage Series C1 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

Functional Output. The SSC1 SAE Fog was designed with optical simulation modeling, to create a highly effective and road-legal fog light pattern. It meets the SAE J583 standard as a Foglamp, for legal on-road use and will fully illuminate the area in front of your vehicle. With just one LED, the SSC1 is the smallest aftermarket fog lamp on the market!

Backlight Functionality The Stage Series C1 LED Pod includes a distinctive backlight feature as well. The SSC1's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find in other single-LED pods on the market.

Simple connections. All Stage Series C1 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.

Features

• Compact single-LED form factor


• SAE-compliant, road-legal output


• Single automotive-grade Osram HX Boost 20-watt LED


• Backlighting available in white and amber


• Integrated Deutsch-style connector


• Designed torture tested and assembled in USA

Included in the box:

• One (1) Stage Series C1 LED Pod


• One (1) Deutsch-style wire pigtail


• One (1) Mounting bracket and hardware
