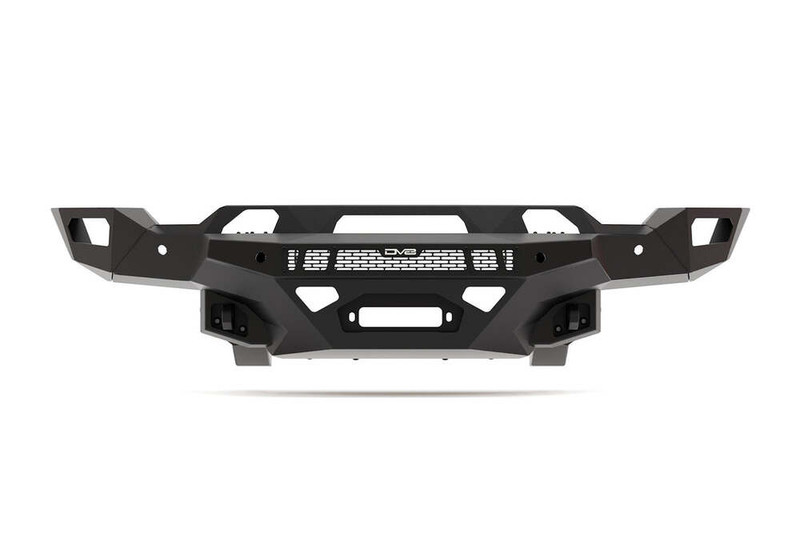

DV8 Spec Series Front Bumper for 20-23 Sierra 2500/3500 - FBGC2-01

DV8 Spec Series Front Bumper for 20-23 Sierra 2500/3500 - FBGC2-01

Our Spec Series Front Bumper for the GMC Sierra 2500 & 3500 combines a rugged styling with a sleek design that is perfectly tailored to the body lines of your truck. Its low-profile wings expose your oversized tires and upgraded suspension. Our Spec Bumper doesn't sacrifice the sleek look for everyday utility with its integrated winch mount that can accept up to a 12,000 lbs. winch. Additionally, the bumper offers a pair of 1 in. thick D-ring mounts that bolt-on to the frame, as well as to the bumper, for an even distribution of weight that provides the strength needed for recovery situations.

The Sierra Front Bumper expands your front lighting capabilities with its central 20 in. light mount that sits behind our signature Spec Series mesh accent panel. For added styling, each wing features two 3 in. pod light mounts. For a bolder design, the bumper is compatible with our Bull Bar with LED Light Bar Mount . It also retains full utility of the factory adaptive cruise control and parking sensors in equipped models which only requires minor wiring to keep functionality. The bumper also does not obstruct the OEM front camera. The front bumper provides a straightforward install process, and the welded-in zip tie tabs allow for clean wire management.

For added styling and durability, our heavy duty bumper is finished in a resilient micro-texture black powder coat with satin black accent panels and an aluminum backed DV8 logo. The bumper is constructed from 3-5 mm thick steel for withstanding the rigours of your job. Whether you're frequenting job sites or deviating from the beaten path, the Spec Series Bumper is here to up your rig's styling and functionality.

• Acute Attention To Detail : The Spec Series line of bumpers, our premier line, features recovery options, lighting options, and an acute attention to detail.
• D-ring mounts : The included D-ring mounts bolt directly to the frame for added strength in recovery situations.
• Lighting Options : This Spec Series front bumper is ready to equip dual 3 in. pod lights on each side wing, a dual row 20 in. light bar in the center panel, and a 13 in. light bar on the optional bull bar.
• Upgrade with Optional Bull Bar : This bumper accepts the LBUN-01brush guard, with it's mounting option for a 13 in. light bar.

Features

• Rugged, sleek design that conforms to your truck's body lines
• 20 in. light bar mount set behind mesh accent panel
• (2) 3 in. pod light mounts per wing (4 total)
• Low-profile fitment for improved ground clearance
• Integrated winch mount that can accept up to a 12,000 lbs. winch
• Winch mount dimensions: 24.25 x 10.52 x 7.15 in.
• (2) 1 in. thick D-ring mounts that bolt-on to the frame
• Expandable with our Bull Bar (PN# LBUN-01) for added utility
• Compatible with factory parking sensors and adaptive cruise control in equipped vehicles
• Retains OEM front camera, except when running add-on bull bar
• Welded-in zip tie tabs for clean wire management
• Aluminum backed DV8 logo
• Micro-texture black powder coated finish w/ satin black accent panels
• Durable steel construction
• Minor wiring required for models equipped with parking sensors
• Trimming of inner fenders required for installation
• Does not retain factory fog lights

Technical Specifications

• Material: 3, 3.5, and 5 mm Steel
• Finish: Micro-Texture Black Powder Coat
• Will it work with adaptive cruise control?: Yes
• Will it obstruct the front camera?: No, but the optional LBUN-01 bull bar will slightly obscure the view.
• Will it fit the factory fog lights?: No
• Will it work with factory sensors?: Yes, minor wiring is needed. If your vehicle doesn't come with sensors, there are plugs included to cover the holes.
• Installation Notes: Inner fender will require trimming. Estimated 4.5 hour installation.
