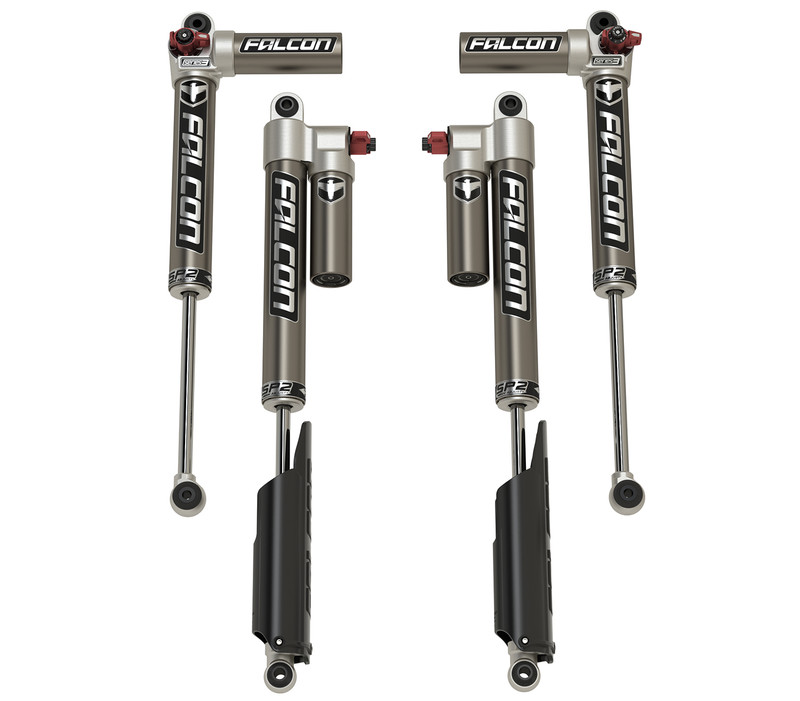

Falcon Shocks Jeep Gladiator Falcon SP2 3.3 Fast Adjust Piggyback Shock Kit 3.5-4.5 inch Lift Long-Travel - 14-02-33-400-200

Falcon SP2 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability with their easy-to-use 3-position Fast Adjust Knob. Settings include Soft, Custom, and Firm. The Custom setting incorporates an 8-Position Dial for more precise tuning.

High-Value Performance inch is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs. These Jeep-specific shock absorbers deliver increased stability, improved ride quality, and comfort for daily-driven vehicles as well as race-inspired performance, handling, and stability for off-road rigs.

Falcon Performance Shocks by TeraFlex. SP2 3.3 Fast Adjust Piggyback Shocks: SP2 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability for specific terrain and/or handling characteristics Fast Adjust Knob w/ 3 compression settings for large damping adjustments

Settings include: Soft, Medium, Firm Custom setting

Includes:

• 8-Position Dial for finer damping adjustments SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings


• Ideal for daily-driven Jeeps as well as the serious enthusiast wanting to adjust damping for all driving conditions

JL Falcon Shocks:

• JL corner-specific shock absorber w/ race-inspired performance


• Front lower offset eyelet design provides maximum shock body to frame clearance during articulation


• Rear roost guards prevent shock shaft damage from rocks kicked up by the tires


• SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings

Falcon Series 3 Piggyback Shocks:

• Piggyback design increases oil and gas capacity for reduced heat Flows


• 6x more oil than restrictive reservoir hose designs


• Eliminates common leakage issues found in banjo and swivel fittings


• Front shocks' unique horizontal piggyback reservoir increases tire clearance


• Cartridge Upgrade Kits are available separately - contact customer service for details

Features and Benefits:

• SP2 Mode Adjust Shocks: Choose between Soft and Performance modes during install


• Tunes both compression and rebound


• Soft mode allows a partial bypass of the main piston for a softer ride


• During aggressive driving, Soft mode retains performance tuning for optimal handling


• Soft mode recommended for rough terrain/surfaces and cold weather


• Performance mode recommended for max on- and off-road handling, stability, and control

Falcon Performance Shocks (All): Vehicle-specific shock absorbers Race-inspired performance for increased vehicle stability Improved dynamic roll control and low-speed damping

• Dramatic improvement in on-road comfort and off-road performance


• Optimized fitment for unobstructed suspension travel and articulation


• 2.3 inch shock body provides optimal performance 6061-T6 aluminum alloy shock body resists Impact to protect internal components


• Smooth honed internal shock body surface for long-term performance


• 3/4 inch induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling


• Large shaft diameter provides a wide range of adjustment on adjustable shocks


• Hard anodized 6061-T6 aluminum alloy billet piston 1-piece Teflon bronze piston wear band w/ O-ring


• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume


• VOD reduces shock bottoming at full compression or over uneven terrain


• OGS (Oil/Gas Separator) prevents cavitation


• High-viscosity, full synthetic


• Red Line shock oil for consistent performance across all temperatures


• Synthetic formula also contains special anti-wear and lubricity agents


• 1,000-hour salt spray corrosion resistance test on all hardware


• Serviceable and rebuildable (factory serviced)


• Designed, engineered, and assembled in-house from domestic and globally sourced components


• Patented design


• 3-year warranty

Includes:

• SP2 3.3 Fast Adjust Piggyback Shocks - all 4 Rear roost guards - pair All necessary hardware

Vehicle Fitment Info

• JT Gladiator 3.5-4.5 inch Lift (long-travel) Does Not fit EcoDiesel models

Product Notes

Does Not fit EcoDiesel models. Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders - See instructions for proper configuration for your application. Long-travel shocks allow increased rear travel for lift kits exceeding 2.5 inch. Long-travel rear shocks Require additional driveline/suspension components as well as longer rear brake lines to safely use these shocks.

Configurations:

0-1.5 inch Lift - All 4 (14-02-33-400-000) 2-3 inch Lift - All 4 (14-02-33-400-1150) 3.5-4.5 inch Lift - All 4 (14-02-33-400-200)

Install Time

• 1.5 Hours
