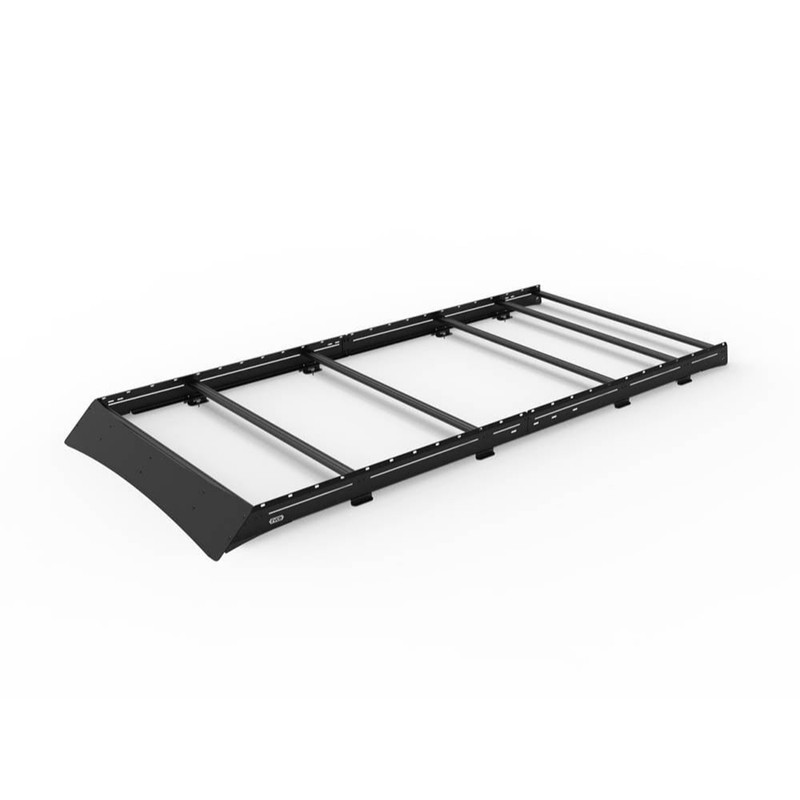

FVC 148" Mid Roof Low Pro Roof Rack for 15-25 Transit - TR0104B

FVC 148" Mid Roof Low Pro Roof Rack for 15-25 Transit - TR0104B

Our Transit Van Low Pro Roof Rack for the 148" Mid Roof model is a durable and lightweight roof rack at an affordable price. This rack has all the versatility needed to mount gear and other accessories.

We redesigned the landing pads used to mount the rack in March of 2022 for a lower profile - Now it's even more robust and hugs the roofline of the Transit better. They're created with formed 12GA 304L stainless steel with dual flanges and a central mounting point, and are designed to distribute the weight to the strongest points on the roof. We also include an aluminum front wind fairing with the rack, which helps deflect the wind and keeps things lightweight.

This roof rack has all the versatility you need to mount your accessories, and the adjustable crossbars can adjust forwards & backwards to accommodate fans or an AC unit. The crossbars are standard 10-series extrusion and 80/20 compatible with drop-in hardware slots, so bolting up accessories like solar panels, light bars, or MaxTrax traction boards is simple.

The side rails and crossbars are constructed from lightweight aluminum and powder-coated black. The footers and hardware are stainless steel, and the footers are designed to bolt directly to the factory Ford Transit roof holes for a straightforward installation. The rubber footer gaskets and rubber sealing washers keep the roof of your van watertight.

Transit 148" Mid Roof Low Pro Rack w/Light Bar Compatible Fairing

Select this option to install lighting on the fairing. The light bar compatible fairing has pre-cut holes for easy installation of lighting and is designed to fit most 50" LED light bars.

• The Baja Designs ONX6 50" Arc LED Light Bar fits perfectly on this fairing, but not mandatory. Off road lights and other 50" light bars are also compatible.
• This selection does not include a light bar.

DETAILS

• Lightweight all-aluminum side rails and crossbars - the total rack weight is only 65 pounds
• Landing pads to mount the rack are constructed with formed 12GA 304L stainless steel with dual flanges for even weight distribution
• 6x 58" 10-series and 8020 compatible anodized aluminum crossbars
• Stainless steel hardware included
• Fiamma F45S 300 bolts on, with no modification required
• FVC Side Ladder bolts directly into the Low Pro Roof Rack

COMPATIBILITY

• 2015+ Ford Transit 148 Mid Roof Vans*
  *Does not fit 2026+ vans equipped with shark fin antenna
• 2023+ Ford Transit Trail
