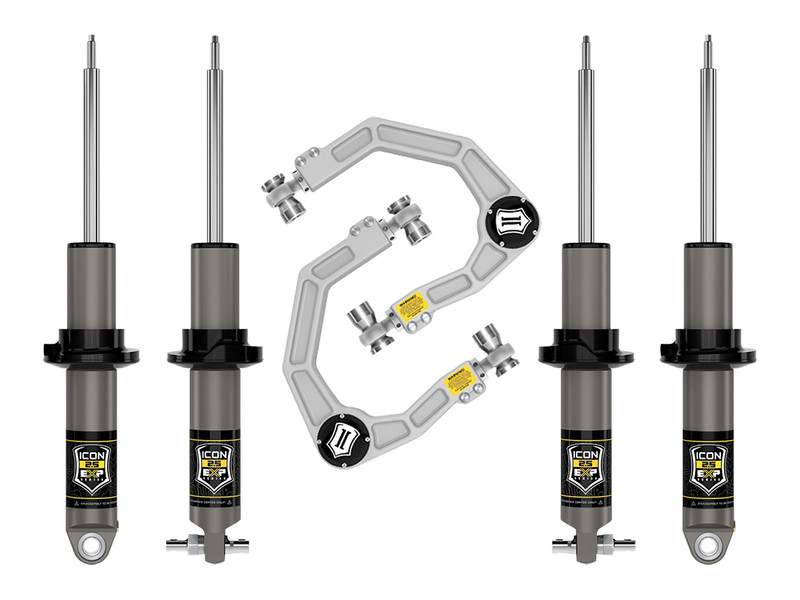

ICON 21+ Bronco Hoss 1.0 Pkg 1.5-3" Lift Stage 2 Suspension System Billet - K40002

ICON VEHICLE DYNAMICS 21-UP BRONCO HOSS 1.0 PKG 1.5-3" LIFT STAGE 2 SUSPENSION SYSTEM BILLET - K40002

To accommodate the increased lift height afforded by the ICON EXP front coilovers, this Stage 2 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement.

• Vehicle specific design for 2021-UP Ford Bronco with HOSS 1.0 Suspension Package
• Vehicle specific tuned shocks for superior shock damping and vehicle control
• Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
• Adjustable ride heights from 1.5-3” of front and rear lift over stock with the use of snap ring
• Utilizes factory coils and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shafts
• One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearings for extended longevity and minimal deflection
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
• 100% Bolt-on - no cutting or welding necessary for installation
• Fully rebuildable and re-tunable

Additional Information: TECH NOTE: Only compatible with 2021-UP Ford Broncos equipped with HOSS 1.0 Suspension Package
