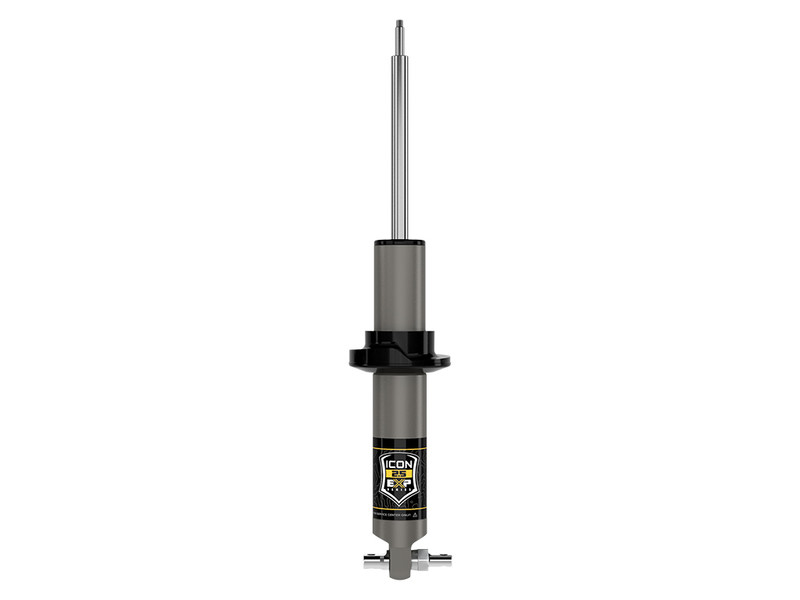

ICON 21+ Bronco Hoss 1.0 Pkg 2.5 Front Exp Coilover - 48601

ICON VEHICLE DYNAMICS 21-UP BRONCO HOSS 1.0 PKG 2.5 FRONT EXP COILOVER - 48601

The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically design for fit each of the Bronco model’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 1.5" to 3” of lift over stock on Bronco’s equipped with the OE HOSS 1.0 suspension package.

• Vehicle specific design for 2021-UP Ford Bronco with HOSS 1.0 Suspension Package
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 1.5-3” of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 100% Bolt-on - no cutting or welding necessary for installation
• Fully rebuildable and re-tunable

Additional Information: TECH NOTE: When running 37” tires bump stop spacer kit part number 611082 is required and crash bar removal may also be required, but is not recommended
