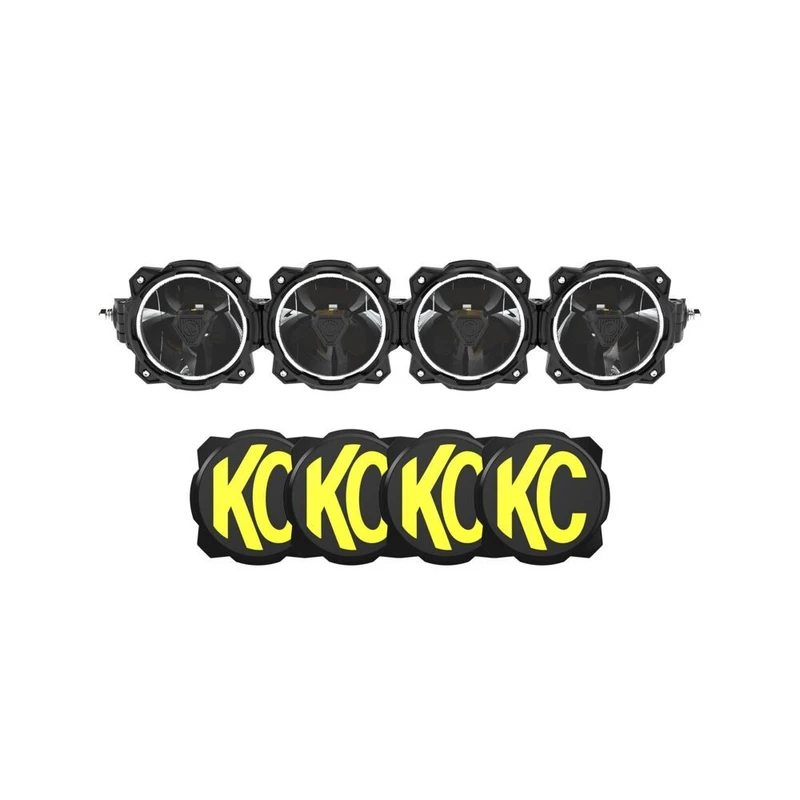

KC HiLiTES Gravity® Titan® LED Light Bar

KC HiLiTES Gravity® Titan® LED Light Bar

The Gravity^® Titan® series elevates the beloved Pro6 lights, increasing brightness, expanding coverage, and integrating an Amber Dust Light for the ultimate, no-compromise lighting solution. The Titan Light Bars revolutionize off-road lighting, merging KC's pioneering linkable and curvable design of the Pro6 but amping up the performance.

At their heart lies the innovative Titan Core, driving 3 LEDs per optics, delivering a 1.3x larger Illumination Zone, 1.7x brighter output, and 1.3x more beam distance than the Gravity Pro6. At the flip of the switch, alter between High Power Mode for intense output and an integrated Amber Dust Light for others to easily see you in dusty conditions. Featuring a patented Pass-Through Front Cooling system, the Titan ensures peak performance and durability, even in high-heat, high-demand situations.

After experiencing the unparalleled lighting power of the Gravity^® Titan®, you'll never look back.

• One for the Ages: The saga of Titan® is one of enduring legacy and groundbreaking advancements. It started with the Gravity^® Pro6 - a game-changer at a time when nothing else came close. Leveraging our rich experience, we took the nostalgia for classic round lights and the demand for LED light bars, and infused all of that together with cutting-edge GRD^® optic technology. This move didn't just light up trails; it sparked a revolution in off-road lighting. Titan stands as a testament to our commitment to push boundaries and fuel off-road adventures.
• No-Compromise Lighting: The Gravity® Titan® light bar delivers trail-ready performance with patented Gravity® Reflective Diode (GRD) technology, utilizing rear-facing LEDs to maximize output and focus light precisely. The result: exceptional clarity, performance, & beam shape.
  • But it doesn't stop there. The Titan core delivers a massive leap in lighting performance:
  • 34.7% larger Illumination Zone*
  • 68.2% brighter peak intensity*
  • 26.8% more beam distance*

  * When comparing a 50 in. Titan light bar to a 50 in. Pro6 light bar.

• Be Seen in Style: Make a statement with the Titan's integrated Amber LED Dust Light. This marker light stands out in low-visibility conditions like dust and snow, ensuring you're seen by others on the trail, day or night. Brighter than traditional backlights, it's designed not just for function, but for flair. While it may not replace a forward projecting light, it excels in making sure you're visible and safe in challenging environments. Turn it on, and it's not just a light - it's a statement.
• Infinity Ring: The industry-first Infinity Ring system allows you to customize your light bar. Like Legos^® for grown-ups, it offers expandable widths, modular beam shapes, and the option to curve or straighten your setup. Create a custom radius to change the way your beams display. The configuration is up to you. Plus, if a light on your light bar ever gets damaged, switching it out is simple (unlike other, non-modular lightbars which require the entire bar to be replaced).
• Explore with Peace of Mind: An innovative wiring plug built directly into the housing features MoistureBlock^® technology. This keeps all the bad stuff out, while ensuring the Titan optics maintain a secure and weather-proof connection despite what the trails throw at you.

Features

• Dual Power Modes
  • Amber LED Dust Light: Acts as a marker light to be seen with in low-visibility conditions.
  • High-Power Mode: Offers intense lighting for nighttime trail use.
• Titan Core
  • Patented Pass-Through Front Cooling: Provides superior thermal management.
  • 3-Source LED Optics: Delivers comprehensive lighting coverage - short, mid, and long-range.
• Linkable and Curvable: Patented Infinity Ring^®️ system offers expandable widths and the option to curve or straighten your setup.
• Gravity Reflective Diode Technology: Ensures unmatched beam precision and efficiency, providing brighter and more focused light.
• MoistureBlock^® Technology: An integrated plug built directly into the housing to keep water out, while maintaining a secure connection.

Specifications

20 in.

• Weight: 13.5 lbs.
• Wattage Per Light: 39W
• Total Wattage: 118W
• Amp Draw Per Light: 3.29 A
• Total Amp Draw: 9.87 A
• Total Lumens: 8,916 lm
• Lux Per Light: 1,443 lx (Spot) / 1,550 lx (Wide 40)
• Total Lux: 2,993 lx
• Candela Per Light: 144,250 cd (Spot) / 155,000 cd (Wide 40)
• Total Candela: 299,250 cd
• Light Temp: 5000 K
• LED Color: Amber / White
• Beam Distance: 547 m
• Light Technology: LED
• Mount Location: Bumper, Overhead
• Size of Products: 20 in.
• Included Components: 1 × 20 in. Gravity® Titan® LED Light Bar – 3-Light, 3 × Gravity 6 in. Light Cover – Black with Yellow KC Logo, 1 × Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
• Tag Line: Iconic Design. Unmatched Performance.
• IP Rating: IP68

26 in.

• Weight: 20 lbs.
• Wattage Per Light: 39W
• Total Wattage: 158W
• Amp Draw Per Light: 3.29 a
• Total Amp Draw: 13.16 a
• Total Lumens: 11,888 lm
• Lux Per Light: 2,886lx (Spot) / 1,550lx (Wide 40)
• Total Lux: 4,435 lx
• Candela Per Light: 288,500cd (Spot) / 155,000cd (Wide 40)
• Total Candela: 443,500 cd
• Light Temp: 5000 K
• LED Color: Amber / White
• Beam Distance: 666 m
• Light Technology: LED
• Mount Location: Bumper, Overhead
• Size of Products: 26 in.
• Included Components: 1 x 26 in. Gravity® Titan® LED Light Bar - 4-Light, 4 x Gravity 6 in. Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
• Tag Line: Iconic Design. Unmatched Performance.
• IP Rating: IP68

32 in.

• Weight: 27 lbs.
• Wattage Per Light: 39W
• Total Wattage: 197W
• Amp Draw Per Light: 3.29 a
• Total Amp Draw: 16.45 a
• Total Lumens: 14,860 lm
• Lux Per Light: 4,329lx (Spot) / 1,550lx (Wide 40)
• Total Lux: 5,878 lx
• Candela Per Light: 432,750cd (Spot) / 155,000cd (Wide 40)
• Total Candela: 587,750 cd
• Light Temp: 5000 K
• LED Color: Amber / White
• Beam Distance: 767 m
• Light Technology: LED
• Mount Location: Bumper, Overhead
• Size of Products: 32 in.
• Included Components: 1 x 32 in. Gravity® Titan® LED Light Bar - 5-Light, 5 x Gravity 6 in. Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
• Tag Line: Iconic Design. Unmatched Performance.
• IP Rating: IP68

39 in.

• Weight: 32.4 lbs.
• Wattage Per Light: 39W
• Total Wattage: 237W
• Amp Draw Per Light: 3.29 a
• Total Amp Draw: 19.74 a
• Total Lumens: 17,832 lm
• Lux Per Light: 5,772lx (Spot) / 1,550lx (Wide 40)
• Total Lux: 7,320 lx
• Candela Per Light: 577,000cd (Spot) / 155,000cd (Wide 40)
• Total Candela: 732,000 cd
• Light Temp: 5000 K
• LED Color: Amber / White
• Beam Distance: 856 m
• Light Technology: LED
• Mount Location: Bumper, Overhead
• Size of Products: 39 in.
• Included Components: 1 x 39 in. Gravity® Titan® LED Light Bar - 6-Light, 6 x Gravity 6 in. Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
• Tag Line: Iconic Design. Unmatched Performance.
• IP Rating: IP68

35 in.

• Weight: 35 lbs.
• Wattage Per Light: 39W
• Total Wattage: 276W
• Amp Draw Per Light: 3.29 a
• Total Amp Draw: 23.03 a
• Total Lumens: 20,804 lm
• Lux Per Light: 7,215lx (Spot) / 1,550lx (Wide 40)
• Total Lux: 8,763 lx
• Candela Per Light: 721,250cd (Spot) / 155,000cd (Wide 40)
• Total Candela: 876,250 cd
• Light Temp: 5000 K
• LED Color: Amber / White
• Beam Distance: 936 m
• Light Technology: LED
• Mount Location: Overhead
• Size of Products: 45 in.
• Included Components: 1 x 45 in. Gravity® Titan® LED Light Bar - 7-Light, 7 x Gravity 6 in. Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
• Tag Line: Iconic Design. Unmatched Performance.
• IP Rating: IP68

50 in.

• Weight: 37.5 lbs.
• Wattage Per Light: 11.2W (Amber) / 39.48W (White)
• Total Wattage: 89.6W (Amber) /315.84W (White)
• Amp Draw Per Light: 0.93 a (Amber) / 3.29 a (White)
• Total Amp Draw: 7.47 a (Amber) / 26.32 a (White)
• Total Lumens: 23,776 lm
• Lux Per Light: 1,443lx (Spot) / 775lx (Wide 40)
• Total Lux: 10,205 lx
• Candela Per Light: 144,250cd (Spot) / 77,500cd (Wide 40)
• Total Candela: 1,020,500 cd
• Light Temp: 5000 K
• LED Color: Amber / White
• Beam Distance: 1,010 m
• Light Technology: LED
• Mount Location: Overhead
• Size of Products: 50 in.
• Included Components: 1 x 50 in. Gravity® Titan™ LED Light Bar - 8-Light, 8 x Gravity 6 in. Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
• Color: Black
• Product Dimensions: W: 51.58 in. x H: 6.05 in. x D: 3.27 in.
• Tag Line: Iconic Design. Unmatched Performance.
• IP Rating: IP68

57 in.

• Weight: 39.35 lbs.
• Wattage Per Light: 11.2W (Amber) / 39.48W (White)
• Total Wattage: 100.8W (Amber) / 355.32W (White)
• Amp Draw Per Light: 0.93 a (Amber) / 3.29 a (White)
• Total Amp Draw: 8.40 a (Amber) / 29.61 a (White)
• Total Lumens: 26,748 lm
• Lux Per Light: 10,101lx (Spot) / 1,550lx (Wide 40)
• Total Lux: 11,648 lx
• Candela Per Light: 144,250cd (Spot) / 77,500cd (Wide 40)
• Total Candela: 1,164,750 cd
• Light Temp: 5000 K
• LED Color: Amber / White
• Beam Distance: 1,079 m
• Light Technology: LED
• Mount Location: Overhead
• Size of Products: 57 in.
• Included Components: 1 x 57 in. Gravity® Titan™ LED Light Bar - 9-Light, 9 x Gravity 6 in. Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
• Tag Line: Iconic Design. Unmatched Performance.
• IP Rating: IP68

Engineered For Adventure

The Perfect Blend: The fusion of multiple beam patterns into one bar combines the distance of Spot Beams with the coverage of Wide-40 Beams, ensuring full coverage in every scenario. The Titan light bar leaves nothing in the shadows.

Versatile Fitment: From Jeeps to Broncos, Toyotas to UTVs, the Titan Light Bar is designed to fit a wide range of vehicles. With bumper and overhead mounting solutions, you can easily install the Titan on your off-road rig.

Gear Up: Customize your Titan Light Bar with our diverse accessories. Choose from light locks, protective shields, stylish covers, wire hiders, and more to enhance performance and style. Perfect for any off-road adventure.
