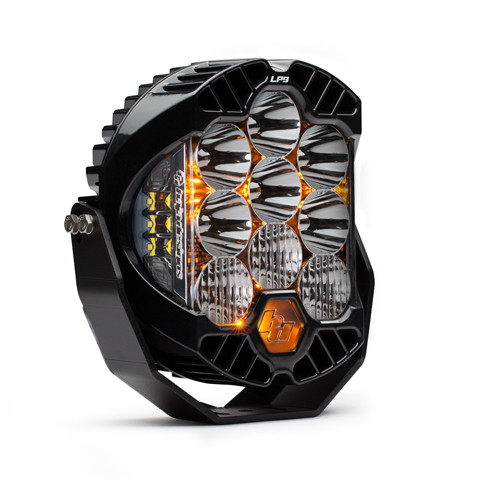

Baja Designs LP9 Pro LED Light Pod, Driving/Combo - 320003

Baja Designs LP9 Pro LED Light Pod, Driving/Combo - 320003

A design that was inspired by Baja Designs legendary 8 in. La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using our proprietary Direct Ducted Cooling (DDC) technology, which allows air to travel from the front of the housing and over the rear heat sinks drastically improving cooling capacity and performance. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

The LP9 Pro is available in multiple patterns to suit your needs. The driving/combo pattern provide maximum trail coverage in a single light. The driving/combo pattern is equipped with both driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.

The addition of red, blue, or green backlight options alongside our original amber on the LP9 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.

Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.

Satisfaction Guarantee: 30-Day Money Back Guarantee

Limited Lifetime Warranty: Complete Purchase Protection

uService: Replaceable Lenses And Optics

ClearView: All The Light, Right Where You Need It

MoistureBlock: Waterproof, Rain Proof, Submersible

CopperDrive: Safely Driving LEDs at 100%

5000K Daylight: Less Driver Fatigue, Natural Color

Specifications

• Housing Material: Powder Coat Cast Aluminum
• Lens Color: Clear
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 1
• Lighting Modes: High Beam/Low Beam/Day-Time Running Backlighting
• Lighting Quantity: 9
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: LP9 Pro LED Light Pod
• Wattage (W): 124.200
• Wiring Harness Included: No
• Amperage Rating (A): 9
• Average Rated Life (hr.): 49,930
• Beam Pattern: Spot
• Bezel Material: Powder Coat Cast Aluminum
• Brightness (Lumens): 12547
• Description: Spot; Clear
• Housing Color: Black
• Universal or Specific: Universal
• Terminal Connector: DT06-4S Deutsch
• Terminal Type: Mating Connector
• Secondary Amperage Rating (A): 1.520
• Secondary Brightness (Lumens): 2302
• Secondary Light Quantity: 6 LEDs
• Secondary Lighting Technology: LED
• Secondary Lighting Type: Integrated Peripheral Technology (IPT)
• Secondary Wattage (W): 21
• Backlight Amperage Rating (A): 0.200
• Backlight Wattage (W): 2.800

Standards/Compliance

• Patent No.: 5,504,603
• Durability: Exceeds MIL-STD810G (Mil-Spec Testing)
• Impact Resistance: IK10 Compliant (Mechanical Impact Testing)
• Water Resistance: IP69K (Waterproof up to 9 ft. & Pressure Washable)
