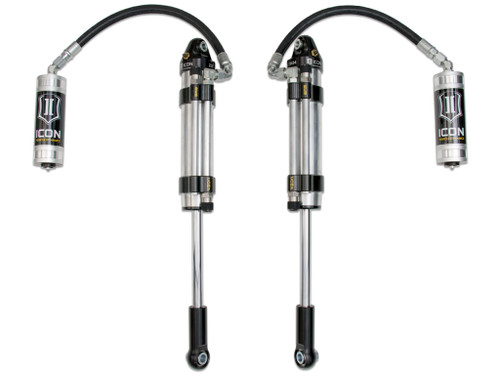

ICON Front, V.S. 2.5 Aluminum Series Shock Absorbers, S2 Secondary Shocks, Remote Reservoir, Pair for 05-23 Tacoma, 03-24 4Runner, 07-14 FJ Cruiser, 03-09 GX470 - 59706P

ICON Front, V.S. 2.5 Aluminum Series Shock Absorbers, S2 Secondary Shocks, Remote Reservoir, Pair for 05-23 Tacoma, 03-24 4Runner, 07-14 FJ Cruiser, 03-09 GX470 - 59706P

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.

Features

• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8 in. diameter induction hardened, chrome plated shock shaft
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
• 100% Rebuildable
• 100% Revalveable

Technical Notes

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17 x 8.5 with 4.75 in. Backspace / 0 mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18 x 9 with 5.00 in. Backspace / 0 mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20 x 9 with 5.00 in. Backspace / 0 mm Offset
• Recommended Aftermarket Tires: 33 x 11.50 in. (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #84: Does not fit KDSS equipped vehicles
• APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
• APPLICATION NOTE #250: Also requires ICON S2 Secondary Shock Hoop Kit and applicable LCA Skid Plate Kit or ICON LCA Kit to complete system
• APPLICATION NOTE #251: May not be compatible with other manufacturer's secondary shock hoops or LCA kits
