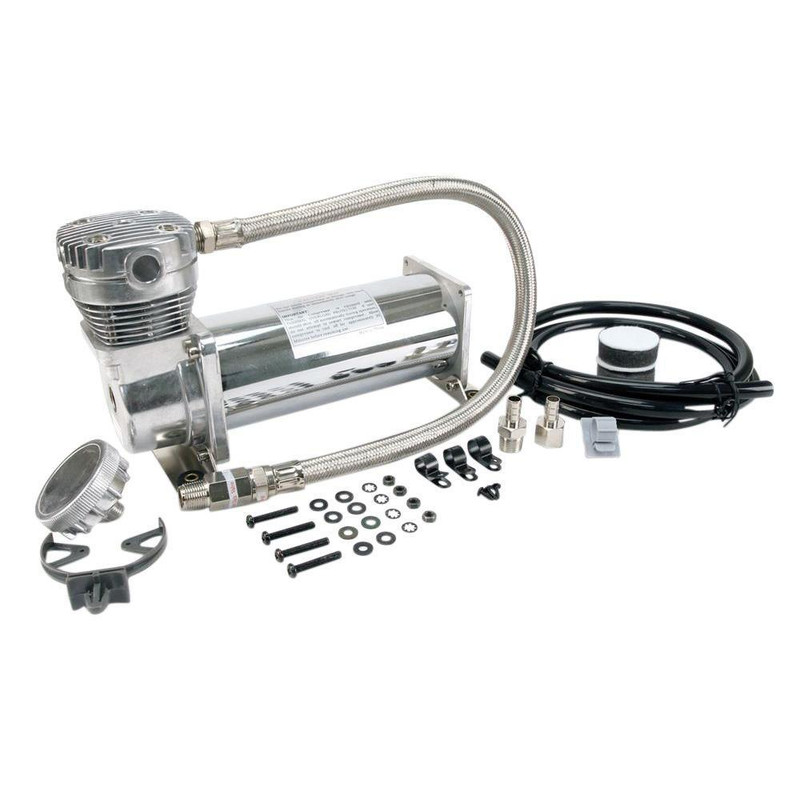

Viair 460C Chrome Compressor Kit, 3/8" Port (12V, 100% Duty, Sealed) - 46043

460C Air Compressor Kit - 150 PSI / 1.80 CFM

The VIAIR 460C compressor is a 1.80 CFM, 100% duty cycle unit that is intended to fill air tanks up to 5 Gal. to a pressure of 150 psi. While other compressors may not have the stamina to work for long periods of time, the versatile 350C keeps on going. If conditions and prolonged use cause the unit to exceed unsafe internal temperatures, the built-in thermal overload protector will disable the unit temporarily, allowing the unit to be restarted when internal temperatures have dropped to acceptable levels.

NOTE: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

FEATURES

• Remote mountable air intake filter included, complete with 2-replacement dual-stage air filter elements


• Equipped with a stainless steel braided leader hose with 3/8 in. NPT male fitting with inline check valve to eliminate head pressure and prolong service life


• Mounting and remote air filter hardware included


• Maximum amp draw at peak pressure is 25 Amp 12-Volt


• Not to fill a tank over 5 Gal.

SPECIFICATIONS

• Permanent Magnetic Motor




• Duty Cycle: 100% @ 100 PSI


• Max. Working Pressure: 150 PSI


• Max. Air Tank Size: 5.0 Gallon


• Max. 12V Amp Draw: 24 Amps


• Ingress Protection Rating: IP67


• Dimensions: 14 x 9 x 7"


• Air Delivery SCFM @ 40PSI: 1.4




• Air Delivery SCFM @ 90PSI: 1.0


• Amperage (amps): 25


• Application Use: Inflation


• Compressor Tank Capacity (Gal.): 5 Gal.


• Compressor Tank Capacity (Gallons): 5.0


• Compressor Type: Light Duty


• Compressor Volume Rating: Quiet


• Compressor/Air Tool Features: Oil Free Compressor


• Decibel Rating (Outdoor): 40 dBA


• Horsepower (hp): .25 hp


• Lubrication Type: Oil Free


• Maximum Pressure (psi): 150


• Power Source: Electric


• Power Type: Corded Electric


• Product Weight (lb.): 13 lbs.


• Tank Material: Steel


• Tank Style: DC Compressors


• Tools Product Type: Air Compressor


• Voltage (v): 12v


• Part Number: 46043



INCLUDES

• Thermal Overload Protector


• Check Valve


• Vibration Isolators


• Mounting Hardware


• Stainless Steel Braided Leader Hose


• Air Line for Remote Mount Air Filter


• Remote Mount Air Filter Assembly


• (2) Replacement Air Filter Elements


• Installation Instructions
