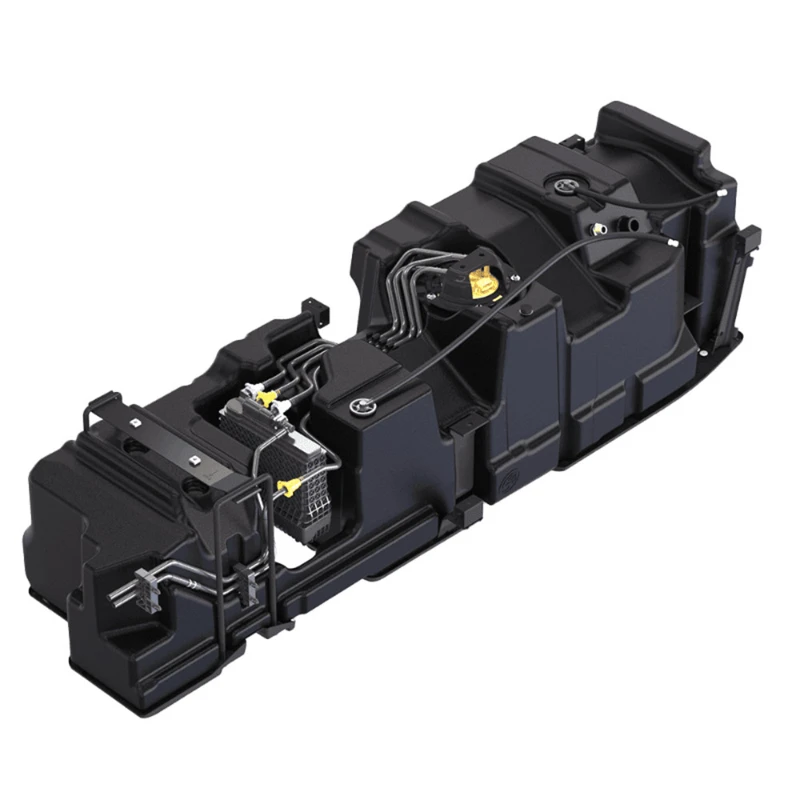

S&B 60 Gallon High-Capacity Fuel Tank for 17-26 Powerstroke 6.7L Crew Cab Short Bed - 10-1004

S&B 60 Gallon High-Capacity Fuel Tank for 17-26 Powerstroke 6.7L Crew Cab Short Bed - 10-1004

Important Notes: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically.

Bottom surface area on S&B Tank is larger, the 60-gallon tank will have a greater fuel reserve.

According to the Ford TSB 17-0046. Truck's with build date prior to 3-20-17. Replace the fuel Level Sender Resistor Card Assembly with Ford part # HC3Z-9A299-N.

Tanks made prior to 1/1/2024, won't fit 2023+ HO models due to fuel line going to the DPF.

Product Details

• Compatible with gooseneck and 5th wheel: Yes
• Compatible with oe skid plate: Yes
• Dimensions: 76.02 in. X 20.69 in. X 19.08 in.
• Drain: No
• Embedded fitting thread size: 1/2 in. NPT
• Ground clearance compare to oe tank: 1.75 in. Lower
• Sending unit: OEM
• Straps included: Yes
• Street legal in all us states: Yes
• Sump: No
• S&B Capacity (Approximate): 60 gallons
• Tank type: Midship
• Transfer pump ready: Yes
• Weight dry: 50lbs.

Almost Doubles Your Range: S&B's 60-gallon fuel tank directly replaces the OEM 34-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 5 more gallons than competitor tanks, allowing you to save time, go further, and get more out of your truck! Go big or go home!

Easy Recalibration For Distance To Empty: We offer a free service to update the computer in your truck so the Distance to Empty (DTE) displays the accurate range. This works for 2011-2022 Ford trucks. For '23+ Ford Super Duty trucks, we offer TI1532-00.

Compatible With The Oe Skid Plate: If you don't have a skid plate on your truck already, no problem! But if you do, unlike other competitor tanks, we designed the S&B Tank to allow you to reuse the factory skid plate. We also designed a smaller, factory style skid plate to cover the front of the larger S&B Tank.

Aftermarket Lift Pump: S&B Tanks work with OEM and aftermarket lift pumps. Aftermarket lift pumps(FASS & Airdog) provide more fuel to your diesel engine but face issues at a 1/4 tank fuel level. TheS&B Sending Unit allows you to drive to empty with your aftermarket lift pump. Completely plug and play, with no need to modify your OEM tank or sending unit.
