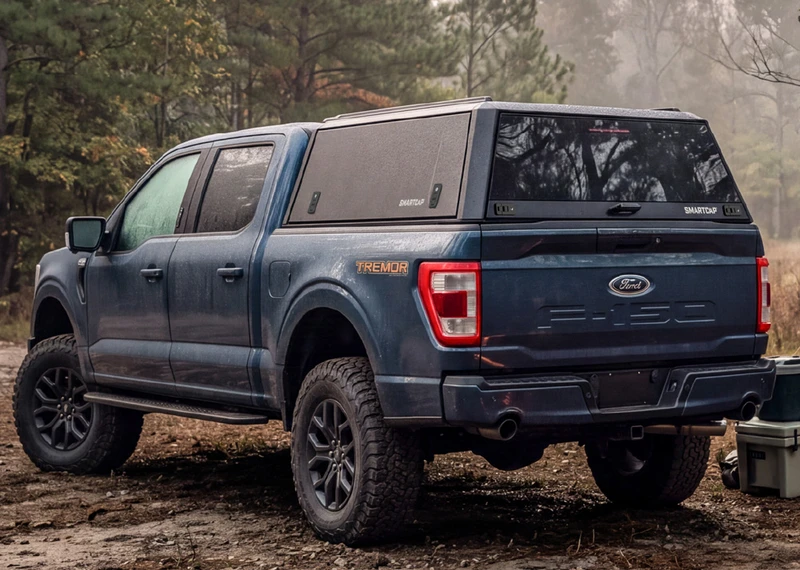

SmartCap Edge Adventure Truck Cap

SmartCap Edge Adventure

Introducing the SmartCap Edge Adventure—massive edge-to-edge reinforced stainless steel gullwing side doors to protect your cargo from would-be thieves. Featuring a front slider window and rear half-door with tinted glass. Plus, the Edge-to-Edge door design offers one of the largest side openings of any cap every made—making it really easy to get large stuff in and out of the bed.

• Reinforced Stainless Steel Gullwing Side Doors
• Front Slider Window
• Rear Half-Door with Edge-to-Edge Tinted Glass
• Massive Edge-to-Edge Side Openings
• Air Flow Mode Bed Ventilation
• Positive Pressure Air Vent
• Universal Roof Rails Hold 770 lbs. Static / 330 lbs. Dynamic

The Edge Adventure offers many features including: Modular Design with Integrated Roof Rails, Stainless Steel Construction, Positive Pressure Air Vent, Front Flush-Bonded Slider Window, Solid Gullwing Side Doors w/ Integrated MOLLE Panels and Air Flow Mode Brackets, Rear Half-Door w/ Flush-Bonded Fixed Window, Third Brake Light, Matte Black Automotive Finish, and a 330 lb. Dynamic (Moving), 770 lb. Static (Parked) Load Rating.

Details

• Stainless Steel. Forged from automotive-grade stainless steel, SmartCap is arguably the strongest truck cap ever designed. It'll hold 330 lbs. of gear when moving and a whooping 770 lbs. parked.
• Modular Design. The modular design makes it easy to assemble and disassemble as needed while also allowing for the replacement of a single panel in the event of damage rather than the entire cap.
• Edge-To-Edge Design. SmartCaps new Edge-to-Edge design is one of, if not, the largest opening of any cap on the market today. Estimated to be around 35% larger than the average fiberglass opening—making it easier to get large items in and out of the bed.
• Positive Pressure Air Vent. The Positive Pressure Air Vent filters air at a greater velocity than the enclosed bed that is try to suck it back in. This keeps road dust outside of the bed rather than all over your stuff.
• Universal Roof Rails. The integrated Roof Rails allow you to utilize other SmartCap accessories for mounting rooftop tent, bikes, kayaks, ladders—you name it.
• 3rd Brake Light. The SmartCap incorporates a high-mounted third brake light that's a real attention grabber when slamming on the brakes. *Available on most models.
• Weatherproof. The innovative sealing method that when properly installed makes the SmartCap weatherproof—keeping your cargo dry as a bone.
• Easy Removal. The Edge Adventure can be removed in under 15 minutes, giving you the ability to haul taller loads. And when you're ready to put it back on—snap! It's back on.
• 3 Year Comprehensive Warranty. 3 Year comprehensive warranty provided on all parts and workmanship.

Available Applications

When ordering Caps and Components for vehicles still under the manufacturer's warranty, it is the vehicle owner's responsibility to ensure that the warranty will not be adversely affected by the installation of these parts. If in doubt, please consult your owner's manual, or contact your local servicing dealership or the vehicle manufacturer before ordering.

CHEVY/GMC

• 19-26 Silverado/Sierra 1500 (New Body)
  • 5.8' Bed [PN: EA0130-BN]
  • 6.5' Bed [PN: EA0131-BN]
  • 8' Bed [PN: EA0132-BN]
• 20-26 Silverado/Sierra HD 2500/3500 (New Body)
  • 6.9' Bed [PN: EA0133-BN]
  • 8' Bed [PN: EA0134-BN]
• 23-26 Colorado/Canyon, 5' Bed [PN: EA0135-BN]

FORD

• 15-20 F-150, 5.5' Bed [PN: EA0333-BN]
• 17-22 F-250/350 Super Duty, 6.8' Bed [PN: EA0332-BN]
• 21-26 F-150
  • 5.5' Bed [PN: EA0333-BN]
  • 6.5' Bed [PN: EA0334-BN]
  • 8' Bed [PN: EA0335-BN]
• 23-26 F-250/350 Super Duty
  • 6.8' Bed [PN: EA0336-BN]
  • 8' Bed [PN: EA0337-BN]
• 24-26 Ranger, 5' Bed [PN: EA0338-BN], see Fitment Notes & Requirements below
• 22-26 Maverick, 4.5' Bed [PN: EA0339-BN]

JEEP

• 19-26 Gladiator, 5' Bed [PN: EA0630-BN]

NISSAN

• 22-26 Frontier
  • 5' Bed [PN: EA0930-BN]
  • 6' Bed [PN: EA0931-BN]

RAM

• 19-26 RAM 1500 DT (New Body)
  • 5.7' Bed [PN: EA1030-BN]
  • 6.4' Bed [PN: EA1031-BN]
  • 8' Bed [PN: EA1032-BN]
• 20-26 RAM 2500/3500 DT (New Body)
  • 6.4' Bed [PN: EA1033-BN]
  • 8' Bed [PN: EA1034-BN]
• 19-26 RAM 1500 (RamBox), 5.7' Bed [PN: EA1035-BN]

RIVIAN

• 21-26 R1T, 4.5' Bed [PN: EA1130-BN]

TOYOTA

• 24-26 Tacoma
  • 5' Bed [PN: EA1337-BN]
  • 6' Bed [PN: EA1338-BN]
• 16-23 Tacoma
  • 5' Bed [PN: EA1332-BN]
  • 6' Bed [PN: EA1333-BN]
• 22-26 Tundra, see Fitment Notes & Requirements below
  • 5.5' Bed [PN: EA1334-BN]
  • 6.5' Bed [PN: EA1335-BN]
  • 8' Bed [PN: EA1336-BN]
• 07-21 Tundra, 5.5' Bed [PN: EA1330-BN]

Fitment Notes & Requirements

• 2019+ Ranger Incandescent Tail Light Note: If your 2019+ Ranger has incandescent tail lights (non-LED), your SmartCap will require a special 3rd brake light harness. Please call or text us at 888-466-8991 to obtain the harness prior to installation.
• 2024 Ranger Requirements: It is a requirement from Ford that any 2024 Next Gen Ranger produced ON or BEFORE 09/19/2024 with accessories extending above the bedrails, and weighing in excess of 88 lbs., be fitted with Load Box Reinforcement Brackets (aka J-Braces). To view 2024 Ford Ranger load box reinforcement brackets note, click here.
• 2026 Ranger Updated Mounting Brackets Required: If you have a 2026 Ranger, please call or text us at 888-466-8991 as it is vital we make sure you receive the new fitment kit containing updated hardware needed to complete the installation.
• 2022+ Tundra Requirements: The 2022+ Tundra requires Bed Stiffeners to be installed for ALL bed rail mounted accessories. Failure to install these may affect the structural integrity of the Tundra’s bed walls. This not only may damage your truck bed, but may also lead to SmartCap Rear Flange welding failures and other critical damage. Please note, damage to your SmartCap that is directly attributable to not having Bed Stiffeners/J-Braces installed will not be covered under the SmartCap 3-Year warranty. To view 2022 Toyota Tundra Bed Stiffeners/Warranty note, click here. Offroad Alliance offers a few bed stiffeners options, CBI Offroad Bed Stiffener Brackets or Rago Fabrication Bed Channel Stiffeners.

How To Measure Your Truck Bed

Many trucks come with multiple bed configurations, to learn how to measure your bed properly see our How to Measure Your Truck Bed: A Complete Guide blog. If you're wondering "How do I measure a truck bed?" or "What size truck bed do I have?", our guide will show you exactly how to measure your truck bed for accessories like truck caps, camper shells, tonneau covers, bed racks, drawer systems, and cargo management upgrades.
