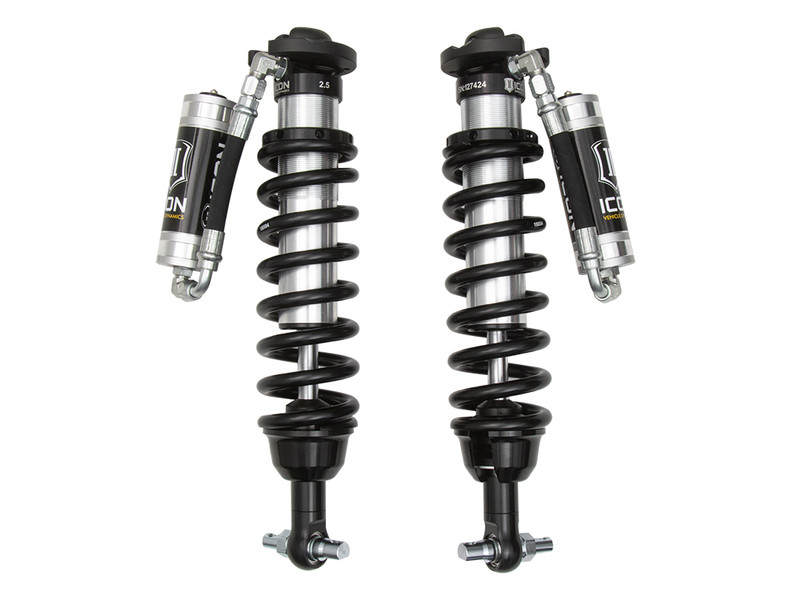

ICON Extended Travel 2.5 VS Remote Reservoir Coilover Kit for 19-23 Ranger - 91355

ICON Extended Travel 2.5 VS Remote Reservoir Coilover Kit for 19-23 Ranger - 91355

ICON Vehicle Dynamics V.S. Series 2.5 in. remote reservoir coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5 in. of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5 in. shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5 in. Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ranger.

Features

• Increased wheel travel over stock
• Vehicle specific tuned front shocks for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended off-road use
• Improved ride quality over stock both on and off-road
• Height-adjustable coilovers offer 0-3.5 in. of lift height adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8 in. induction hardened, chrome plated shaft
• High strength alloy CNC machined lower bar pin
• FK Rod End bearings for extended longevity and minimal deflection
• 100% Bolt-on - no cutting or welding necessary for installation

Technical Notes

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17 x 8.5 in. w/ 5.75 in. Backspace / 25 mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18 x 9 in. w/ 6.00 in. Backspace / 25 mm Offset
• Recommended Aftermarket Tires: 33 x 11.25 in. (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #110: Minor Trimming Required For Recommended Tire Size
• Extended travel coilovers also require aftermarket front upper control arms. DO NOT install in conjunction with OE front upper control arms.
• Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5 in. over stock.
• Not compatible with Ranger Raptor.
