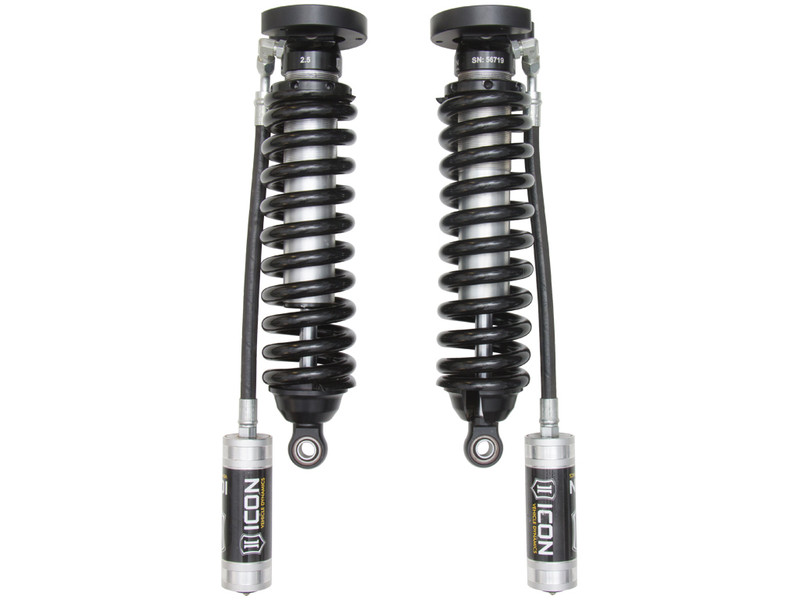

ICON Front, 2.5 VS Remote Reservoir Coilover Kit for 16-23 Titan XD - 81521

ICON Front, 2.5 VS Remote Reservoir Coilover Kit for 16-23 Titan XD - 81521

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2016-2023 Nissan Titan XD. These adjustable coilovers allow up to 2.5-3 in. of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5 in. shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Nissan Titan XD.

Features

• Approximately 32% increased front wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Height-adjustable coilovers offer 2.5-3 of front lift height adjustment
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8 in. diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Technical Notes

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17 x 8.5 with 4.75 in. Backspace / 0 mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18 x 9 with 5.00 in. Backspace / 0 mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20 x 9 with 5.00 in. Backspace / 0 mm Offset
• Recommended Aftermarket Tires: 33 x 11.50 in. (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
