ICON Jeep JK 4.5" Stage 5 Suspension System - K24005

ICON Vehicle Dynamics

Was: $7,937.40
Now: $6,385.92
SKU:
K24005

UNIVERSAL OR MULTI-VEHICLE FITMENT

Review description to confirm additional fitment details

Offroad alliance SNAP Finance banner.

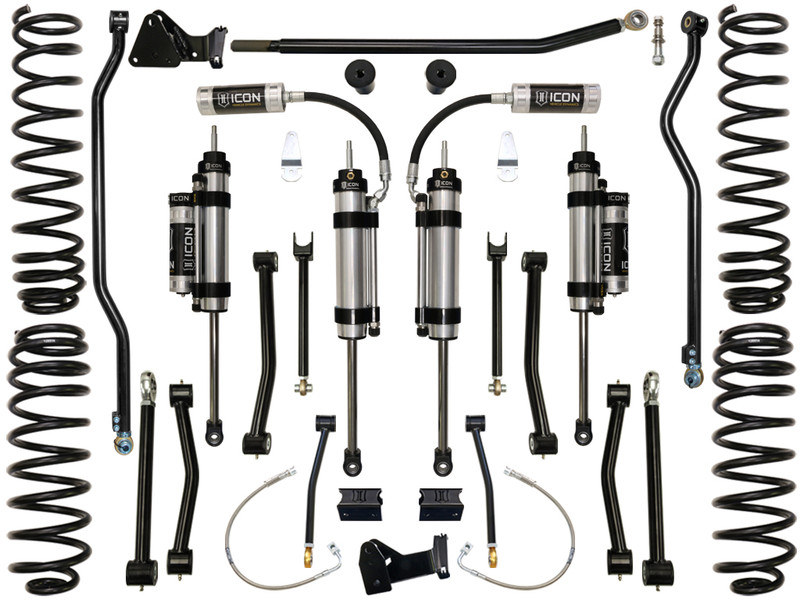

ICON VEHICLE DYNAMICS 07-18 JEEP JK 4.5" STAGE 5 SUSPENSION SYSTEM - K24005

The ICON Stage 5 Jeep JK 4.5" suspension system includes dual-rate coil springs, track bar drop brackets, high-steering components, bump stop spacers, rear brake lines, rear sway bar links, complete set of front and rear links, and 2.5 Omega Series 2 tube bypass shocks. Tested and tuned, the ICON JK Stage 5 suspension system offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on road feel for every day driving. This system includes 2.5" remote reservoir shocks front and rear to ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON Omega Series bypass shocks offer compression and rebound adjustability for fine tuning the riding for any situation faced. Installing this kit allows proper clearance for 35" tall tires with no modifications and 37" tires with aftermarket high clearance fenders.

Features:
  • Dual-rate coil springs front and rear guaranteed never to sag
  • High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
  • Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
  • All links and track bars utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
  • Track bars are on vehicle adjustable designed for optimizing axle postion
  • Includes high-performance rebuildable and revalvable reservoir 2.5 Series shocks w/ CDCV
  • Easy to operate compression adjuster for user shock tune-ability front and rear
  • Increased wheel travel and articulation over stock
  • No welding or cutting required
  • 100% returnable to stock

Additional Information: Ships In Multiple Boxes

Please contact us if you wish to learn more about the warranty for this product.

Please contact us if you wish to learn more about the warranty for this product.

Please contact us if you wish to learn more about the warranty for this product.

Please contact us if you wish to learn more about the warranty for this product.

Please contact us if you wish to learn more about the warranty for this product.

Please contact us if you wish to learn more about the warranty for this product.

Fitment:
Vehicle-specific
SKU:
K24005

No installation documents are available for this product. Please contact us if you require installation assistance.

No installation documents are available for this product. Please contact us if you require installation assistance.

No installation documents are available for this product. Please contact us if you require installation assistance.

No installation documents are available for this product. Please contact us if you require installation assistance.

No installation documents are available for this product. Please contact us if you require installation assistance.

Review Description and More Details for additional fitment specifications such as Engine, Cab Length and Bed Length (if applicable).
