ICON 2.5-3" Lift, Stage 1 Coilover Conversion System for 17-23 F-250/350 Super Duty 4WD - K63141

ICON 2.5-3" Lift, Stage 1 Coilover Conversion System for 17-23 F-250/350 Super Duty 4WD - K63141

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2023 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5 in. Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

Features

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 2.5-3 in. or 3.25-3.75 in. of lift, depending on year model of truck
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8 in. shaft
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection

Technical Notes

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17 x 8.5 in. w/ 5.00 in. Backspace / 6 mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18 x 9 in. w/ 5.25 in. Backspace / 6 mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20 x 9 in. w/ 5.25 in. Backspace / 6 mm Offset
• Recommended Aftermarket Tires: 35 x 12.50 in. (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #1: Only fits 4WD models
• APPLICATION NOTE #3: Will not fit F-350/F-450 Cab & Chassis models
• APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Will not fit 2024 models
• 2017-2019 Super Duty models will have front lift height range of 2.5-3 in. over stock
• 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75 in. over stock
• 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75 in. over stock
• 2023 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3 in. over stock
• 2023 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2 in. over stock
• 2023 Super Duty gas models without Tremor package will have front lift height range of 3-3.5 in. over stock
• 2023 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5 in. over stock
• Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• Included rear shocks are compatible with 0-2 in. of rear lift over stock
• Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

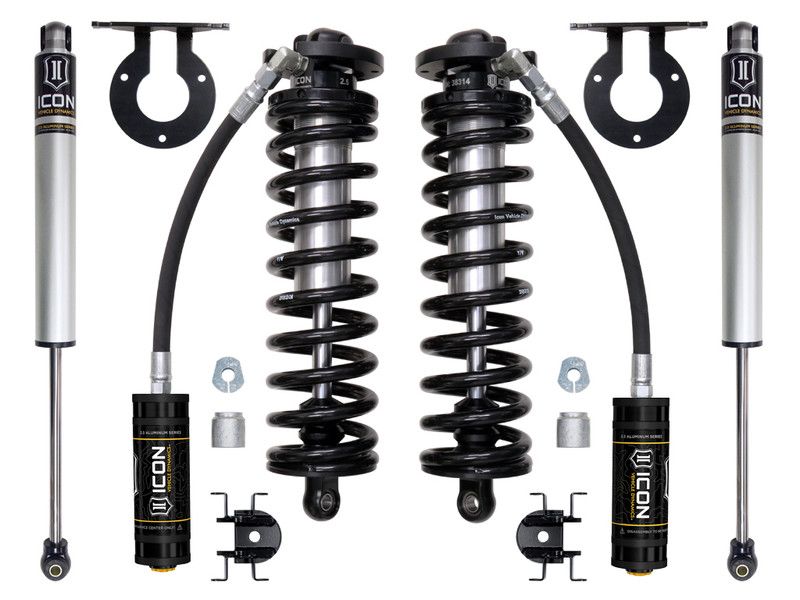

System Components

• 61720 (qty: 1) | 05-23 F250/F350 4WD 2.5-3 in. 2.5 VS RR BOLT IN CO CONVERSION KIT W/ CAMS
• 66516 (qty: 2) | 17-25 FSD REAR 0-2 in. 2.0 VS IR
