Icon Vehicle Dynamics 4.5" Stage 3 Suspension System - 2005-2007 F250/F350

Icon Vehicle Dynamics 4.5" Stage 3 Suspension System - 2005-2007 F250/F350

  • $3,779.48

4.5" Stage 3 Suspension System

This 4.5" System for the 2005-2007 Super Duty is one the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The Dual-Rate front coil springs combined with our ICON 2.0 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and u-bolts and our patented Adjustable Track bar giving the front end of these trucks perfect track alignment.

KEY FEATURES:

  • 50% increase in wheel travel
  • Less body roll than stock truck
  • 4.5" more travel from ride height to front bump stops
  • State-of-the-art dual-rate coil spring
  • Lifetime guarantee that coil springs won’t sag
  • Clears 35" Tall Tires & 37" Tall Tires w/ Minor Trimming
  • No change in towing capacity
  • No drive shaft modifications needed
  • 100%Bolt-on system - no drilling,cutting or welding necessary for install
  • Made in the USA

WHEEL & TIRE FITMENT INFO:

  • OEM Wheels & Tires: Yes
  • Aftermarket Wheels: 8.5-9"" Wide, 5" Backspace
  • Aftermarket Tires: 35" x 12.50"

(Larger Tires May Fit but Fender Trimming and Modifications will be Required)

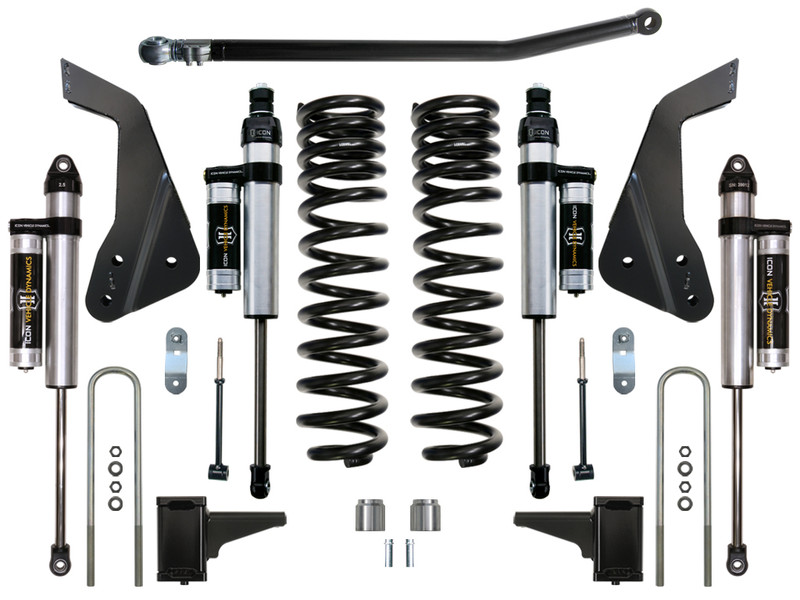

SYSTEM COMPONENTS:

  • 64000 (qty.1) | 4.5" Box Kit (Includes Sway Bar Links, Bump Stop Spacers, and Brake Line Brackets
  • 64010 (qty.1) | 4.5" Lift Dual Rate Coil Spring Kit
  • 64040 (qty.1) | Radius Arm Drop Down Brackets
  • 64031 (qty.1) | Adjustable Track Bar W/ Bearing Rod End
  • 195275 (qty.1) | 5" Fabricated Rear Blocks w/ Built in Bump Stop
  • 37002 (qty.1) | Rear U-Bolt Kit
  • 67710P (qty.1) | Front ICON 2.5 Series Piggyback Reservoir Shocks (Pair)
  • 37701P (qty.1) | Rear ICON 2.5 Series Piggyback Reservoir Shocks (Pair)
