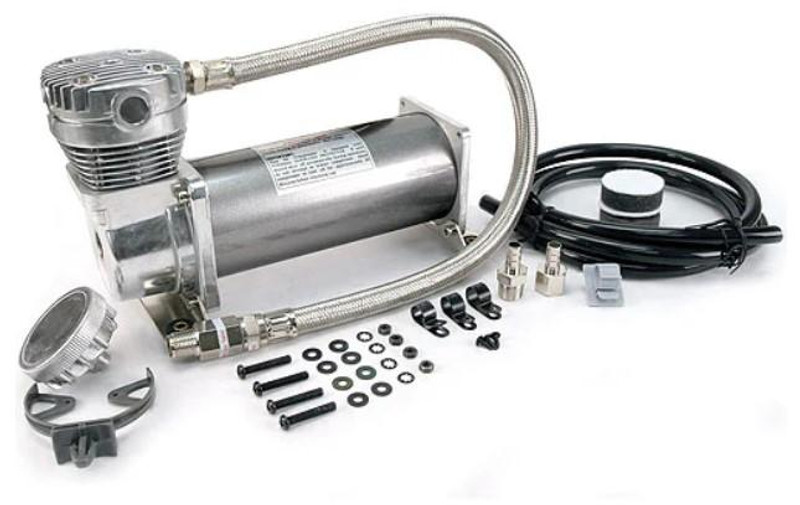

480C Air Compressor Kit - 200 PSI / 1.76 CFM
480C is a truly rated, 200 PSI-rated compressor. The duty cycle of this compressor is 100% @ 100 PSI or 50% @ 200 PSI. It features horizontal cooling fins and a trapezoidal head design, a standard 3/8" stainless steel braided leader hose with 3/8" NPT inline check valve and insulated wiring.
FEATURES
- 200PSI Max Working Pressure, engine must be running during use
- 1.76 CFM Free Flow @ 0 PSI
- Harmount unit with heavy duty wire for permanent installation
- Includes: Stainless steel braided hose, Inline check valve to eliminate high amperage restarts, vibration isolator, and remote air filter option
- Patented design cyclinder head
SPECIFICATIONS
- 200 PSI / 1.76 CFM
- 12-Volt
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.87" x 4.2" x 6.75"
- Weight: 11.05 lbs.
- Part Number: 48043
INCLUDES
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
NOTE: Use thread sealant for proper installation. PTFE tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
